USB20EX100:USB 2.0 EXTENDER OVER CAT 5E / CAT 6 (100M)

$149.99 $99.99

Description

Product Detail

Description:

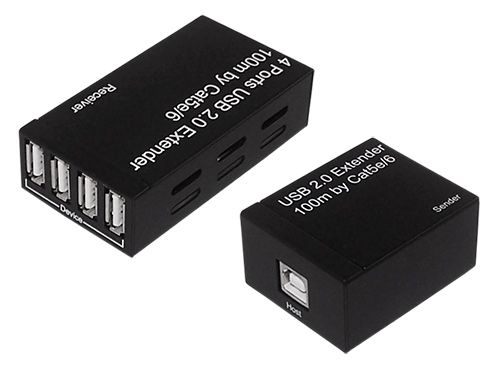

The USB-EC100M is a 4-port USB 2.0 extender. It extends 4 USB devices to 100m away from the host (computer) using one Cat5e/6 cable. If connected to a Ethernet Switch, it can extend 4 USB devices to 200m away from the host using two 100m Cat5e/6 cables.

The maximum transfer speed of USB 2.0 devices can go up to 480Mbps and the actual transfer speed of this product is 150Mbps. It integrates 10/100Mbps Fast Ethernet MAC/PHY and is Embedded Ethernet 802.3/3u transceiver, and compatible 100Base-TX and 10Base-T PMD level standards. This device supports Windows XP, Vista 32bit and 64bit, Windows 7 32bit and 64bit.

Features:
Extend 4 USB devices at the time.
Compatible USB 2.0 specification.
Supports high speed (150Mbps), full speed (12 Mbps) or low-speed (1.5 Mbps) USB devices.
USB devices can work with Cat5e/6 cable up to 100 meters.
If connected to Ethernet Switch, it can extend a USB device to 200m away from the host using two Cat5e/6 cables.
Integrates 10/100Mbps Fast Ethernet MAC/PHY.
Compatible 100Base-TX and 10Base-T PMD level standards.
Embedded Ethernet 802.3/3u transceiver.
Supports MDI/MDIX auto crossover function (Auto-MDIX).
Supports major Ethernet protocols TCP/IP.
Supports OS: Windows XP, Vista 32bit and 64bit, Windows 7 32bit and 64bit.
Not compatible with MAC or Linux operating systems, Window’s only

Package Contents:
1 x Sender USB 2.0
1 x Receiver USB 2.0
1 x User’s Manual
1 x 5V/2A DC Power Supply
1 x USB 2.0 A male to B male cable
