Description
4 x Peripheral Device
1 x 24-pin ATX Motherboard

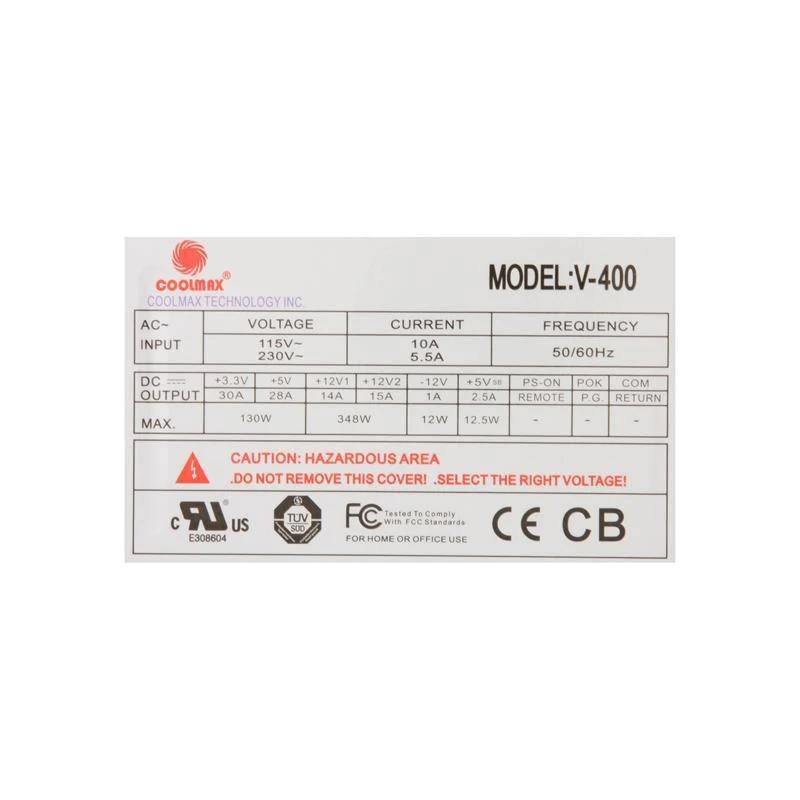

Power Description
Input Voltage Type:AC
Input Voltage:132 V AC
Output Voltage3.3 V DC
Input Voltage Range:100 V AC to 132 V AC
Output Voltage:
12 V DC
5 V DC
Output Power:400 W
Output Voltage:
-12 V DC
12 V DC
-12 V DC
Input Voltage: 264 V AC
Number of +12V Rails:2
General Information
Manufacturer:Coolmax Technology, Inc
Product Model:V-400
Brand Name:Coolmax

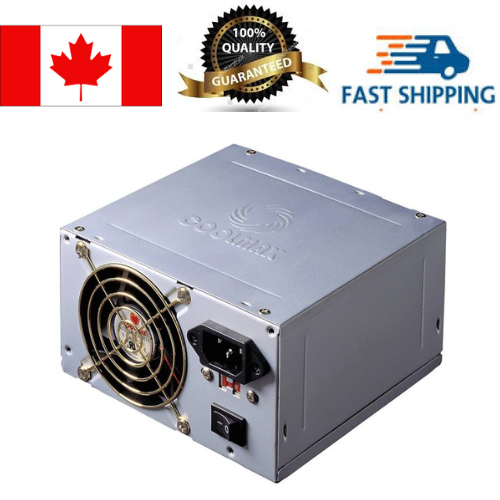

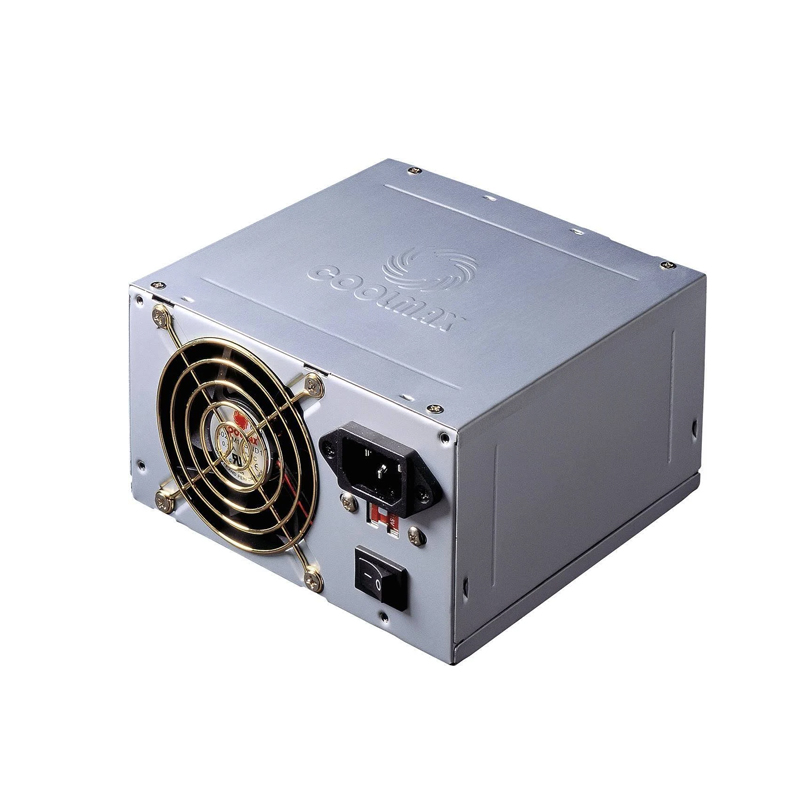

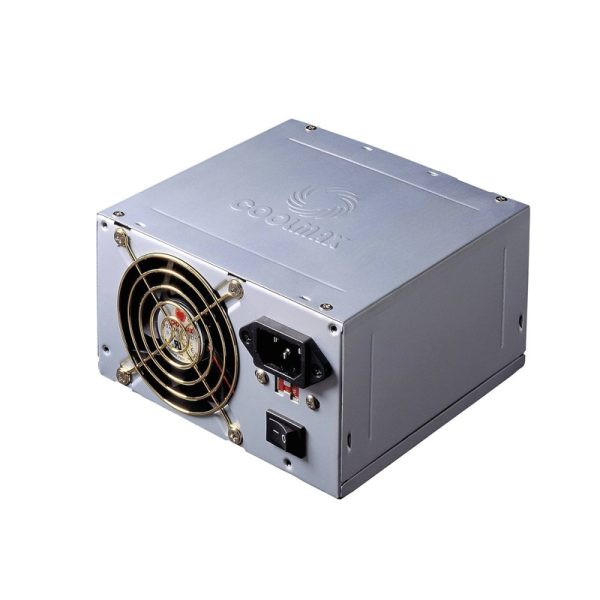

Product Name:400W 80mm Fan ATX Power Supply V-400
Product Type:Proprietary Power Supply
Physical Characteristics
Height:3.30″ (83.82 mm)
Width:5.90″ (149.86 mm)
Depth:5.60″ (142.24 mm)
Compatibility:
Intel
AMD
Reliability
MTBF100000 Hour
Technical Information
Specification Compliance:ATX12V/EPS12V
Number of Fans:1
Output Voltage: 3.3 V DC
Number of +12V Rails:2
Specification Compliance:ATX12V/EPS12V
