Description

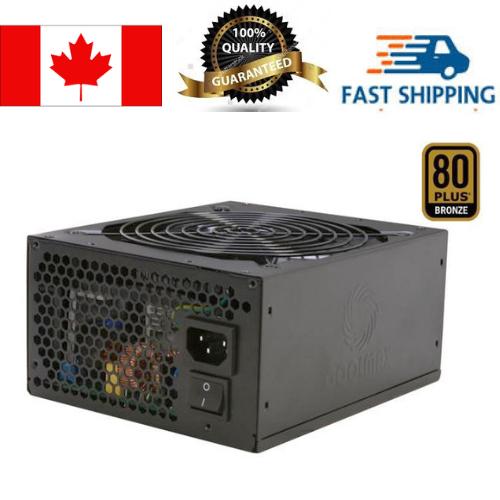

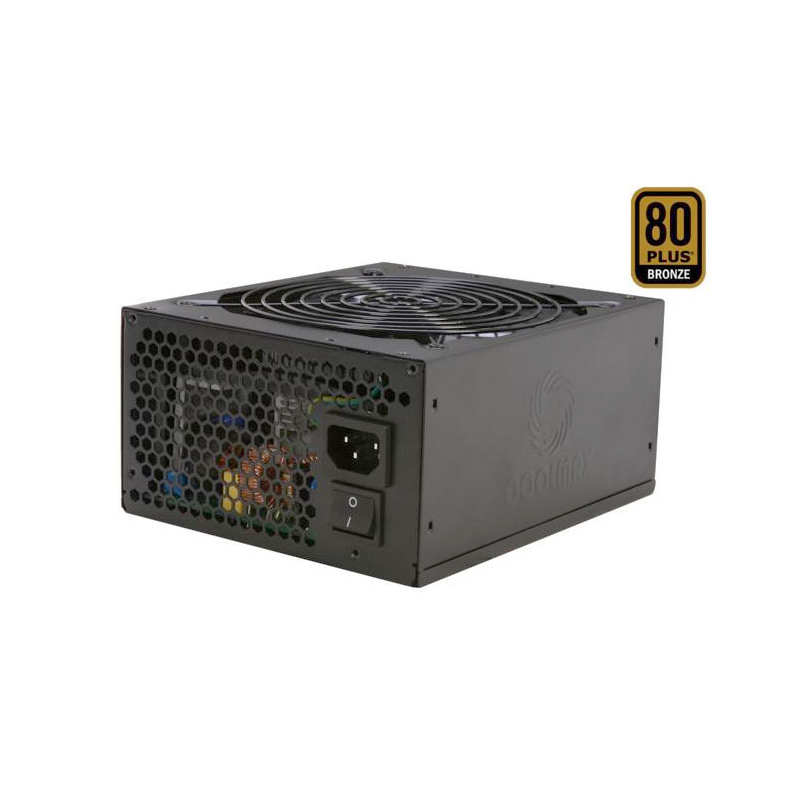

CSU Approved Coolmax ZU series offer 80 PLUS Bronze levels of energy efficiency, massive 12V single rail output gave you the power you needs and modular cable management create a proper airflow inside the case. Dual 6+2 PCI-E connector is suitable for most demanding SLI or CrossFire systems.
Brand: COOLMAX
Series: ZU Series
Model: ZU-1000B
Details
Type: ATX12V / EPS12V
Maximum Power: 1000 W
Fans: 1 x 140mm
PFC: Active
Main Connector: 20+4Pin
+12V Rails: Single
PCI-Express Connector: 2 x 6-Pin, 2 x 6+2-Pin
SATA Power Connector: 9
SLI: SLI Ready
Haswell Support: Yes
CrossFire: CrossFire Ready
Max PSU Length: 175 mm
Modular: Modular
Efficiency: > 85%
Energy-Efficient: 80 PLUS BRONZE Certified
Over Voltage Protection: Yes
Overload Protection: Yes
Input Voltage: 115 / 230 V
Output: +5V@30A, +3.3A@30A, +12V1@83A, -12V@0.8A, +5VSB@3A

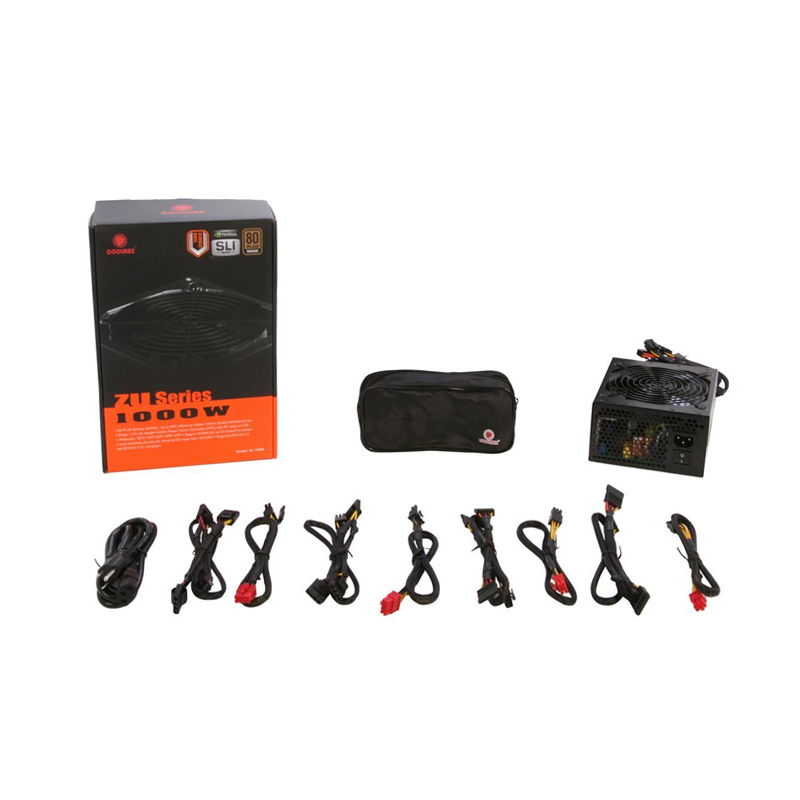

Connectors:
Native Connector
1 x 20+4 Pin
1 x 4+4 Pin Connector
1 x 8 Pin Connector
3 x SATA
Modular Connector
6 x SATA
6 x Peripheral
2 x PCIe 6 Pin
2 x PCIe 6+2 Pin
1 x 4 Pin FDD
Features:
Quiet 140mm double ball bearing fan
80 PLUS Bronze certified – Up to 85% efficienc
Single +12V rail design
Active Power Factor Correction (PFC) with PF value of 0.99
Supports ATX12V 2.3 and EPS12V 2.91 compliantAuto switching circuitry for universal AC input from 100-240V
Protection: OCP/ OVP/ SCP/ OPP/ OTP
Support NVIDIA SLI or ATI CrossFire system
Dimension & Weight
Dimensions: 175.26 mm x 149.86 mm x 83.82 mm (L x W x H)
Weight: 2.30 kg
