Description

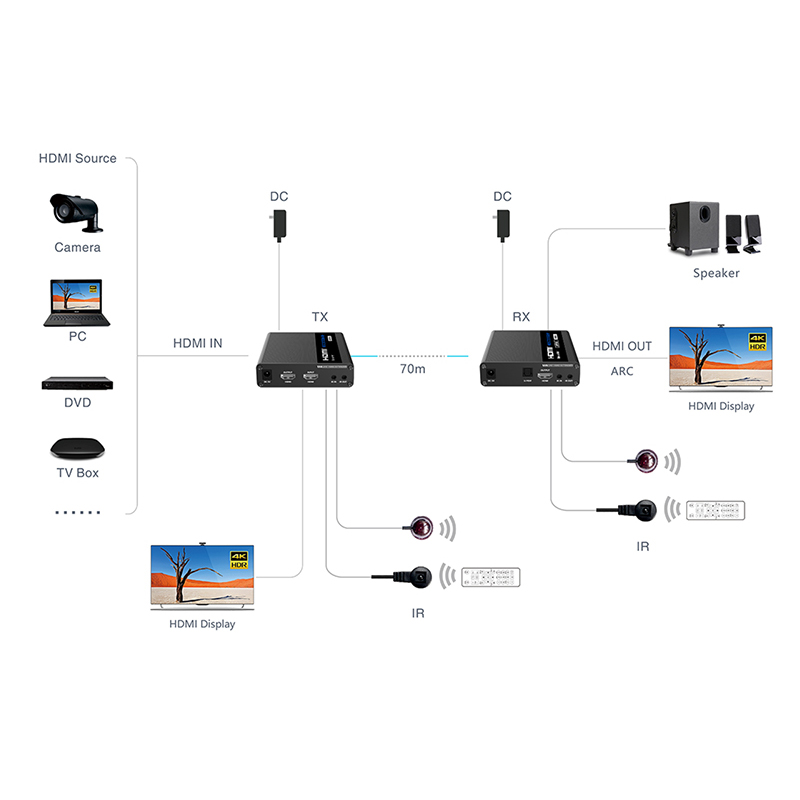

LKV676E HDMI over Ethernet Kit includes a transmitter unit and a receiver unit, allows HDMI signal to be transmitted up to 70 meters at 4K resolution using a CAT6/6A/7 network cable. It is perfect for outdoor advertising, video clips, monitor system, home entertainment, and conference, etc
– Device Type:Transmitters & Receivers
– Extension Distance:70m
– Video Interface:HDMI
– Zero-latency.
– 4K @60Hz HDMI signal can be transmitted 70meters through a CAT6/6A/7 network cable
– The receiver can extract the digital audio from the transmitter through the S/PDIFport.
– Supports audio formats(LPCM/DTS-HD/DTS-Audio/DolbyDigital5.lCH).
– Supports HDR(YUV4:4:4), EDID passback.
– Transmitter support one HDMI loop-out.
– Support bi-directional IR passback function(20~60KHz).
– Lightning Protection, Surge Protection, ESD Protection
– Video bandwidth:18Gbps
– Video support: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840×2160@24/25/30/50/60Hz, 4096×2160@24/25Hz,1280×960,1280×800,1280×768,1680×1050,1360×768,1366×768, 1600×900,1024×768,800×600
– Audio support:LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH
– HDMI connector:Type A 19 Pins, Female
– Network cable standard:CAT6/CAT6A/CAT7, follow IEEE-5688 standard
– Housing:Aluminum alloy material + crystal panel
– HDMI compliance:RX<4W
– HDCP compliance:HDMI2.0 HDCP 2.2
– Lightning protection, Surge protection and ESD protection
What’s in the Box

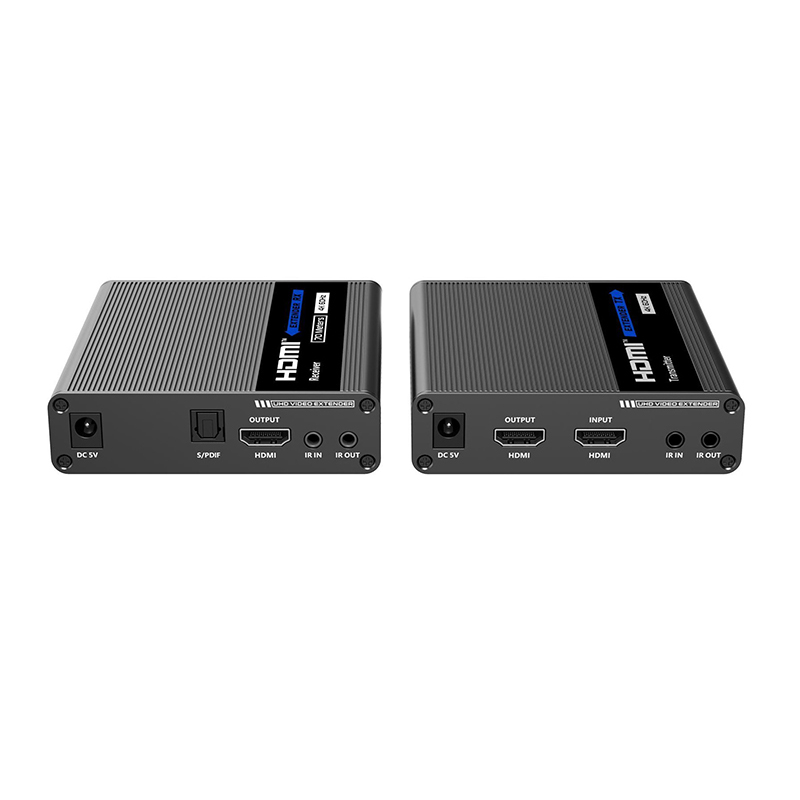

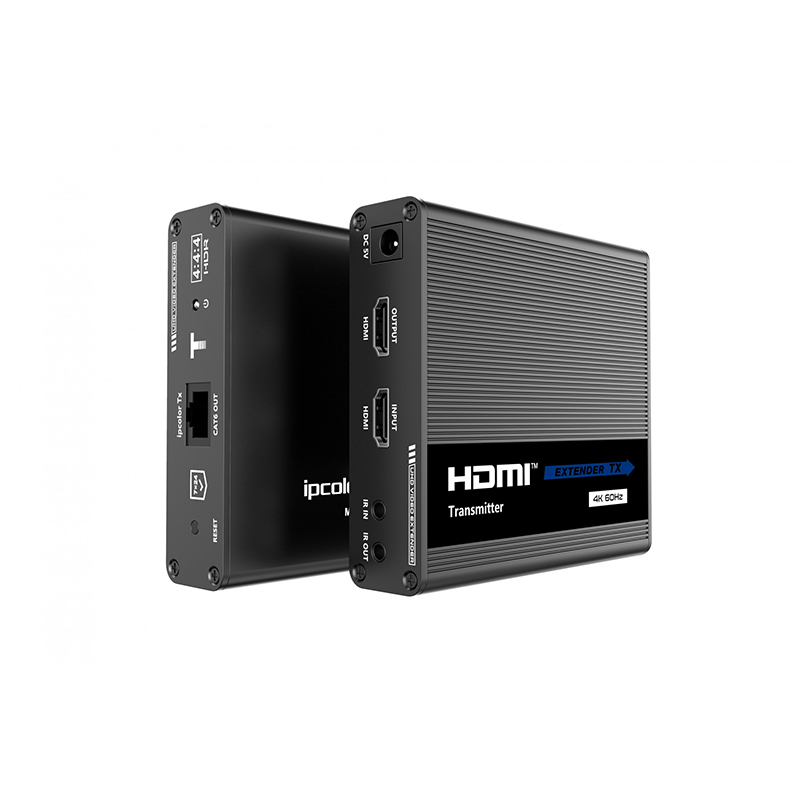

1x Transmitter
1x Receiver
2x DC 5V/2A
1x IR Blaster Extension Cable
1x IR Receiver Extensions Cable
1x User Manual
8x Mounting Brackets, 18x Screw
