Description

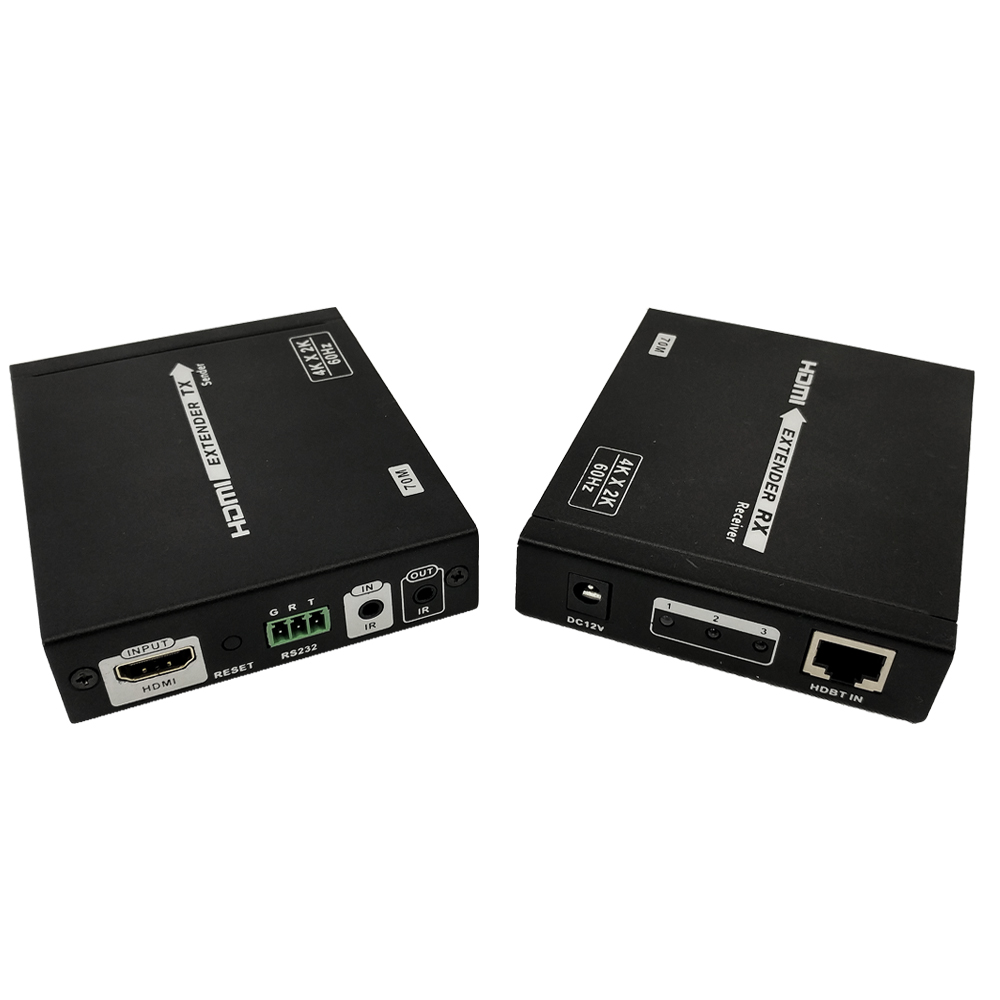

This HDBase-T HDMI extender allows you to extend your display up to 70m (230ft) away from your source device over Cat6/6a/7 cable at a resolution of 4K@60Hz YUV 4:4:4.
Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | 0° ~ 55°C |
Power | |
| Input Voltage | 100-240 V |

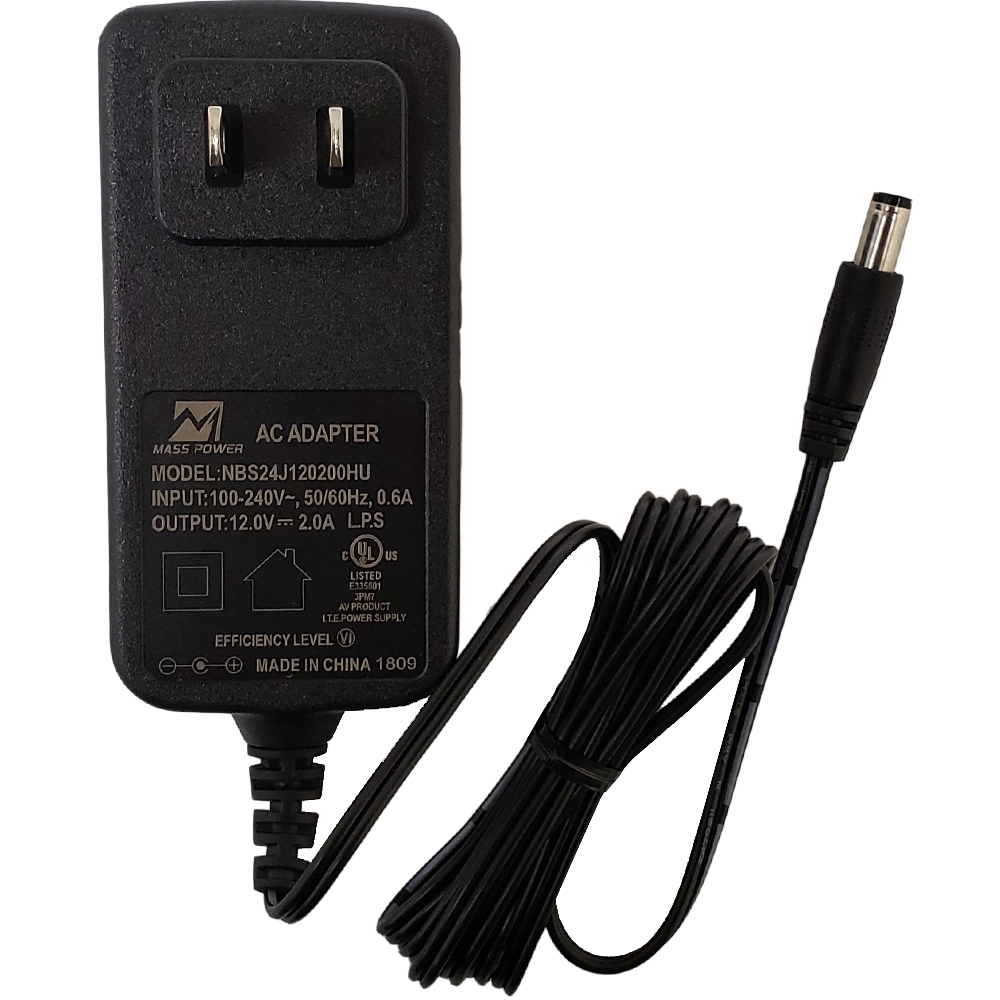

| Power Supply | 12 Volt, 2Amp DC Converter |
Connector(s) | |
| Transmitter | HDMI Input Female, RJ45 Female |
| Receiver | HDMI Output Female, RJ45 Female |
Performance | |
| Video Resolution (70m) | Maximum 4K*2K@60Hz, YUV 4:4:4, Dolby Vision, HDR10 |
| Transmission Distance | 70m (230ft) over CAT6, CAT6A or CAT7 over UTP/STP cable following IEEE-568B standard |
| Audio | LPCM, DTS-HD, Dolby True HD |
| IR Control | Yes, Bi-directional wide band IR(20KHz-60Khz) |
| 3D Compliant | Yes |
| HDCP Compliant | Yes, HDCP2.2 |
| POC | Yes, Receiver Powered by HDBaseT Splitter |
Approvals | |
| Power Adapter | c(UL)us |
Environmental | |
| RoHS | Yes |
Certification(s) | |
| CE | Yes |
| FCC | Yes |
Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.0 lbs [0.46kg] |
| Package Weight | 1.9 lbs [0.86kg] |
Contents | |
| Included in Package | 1 xTransmitter |
| 1x Receiver | |
| 2 x IR Tx | |
| 2 x IR Rx | |
| 1 x DC12V Power Adapter | |
| 2 x RS232 Cable Termination Phoenix Plugs | |
| 1 x User Manual | |
