Description
***please note: LKV683V5.0 version receiver and Transmitter are not compatible with V4.0 version

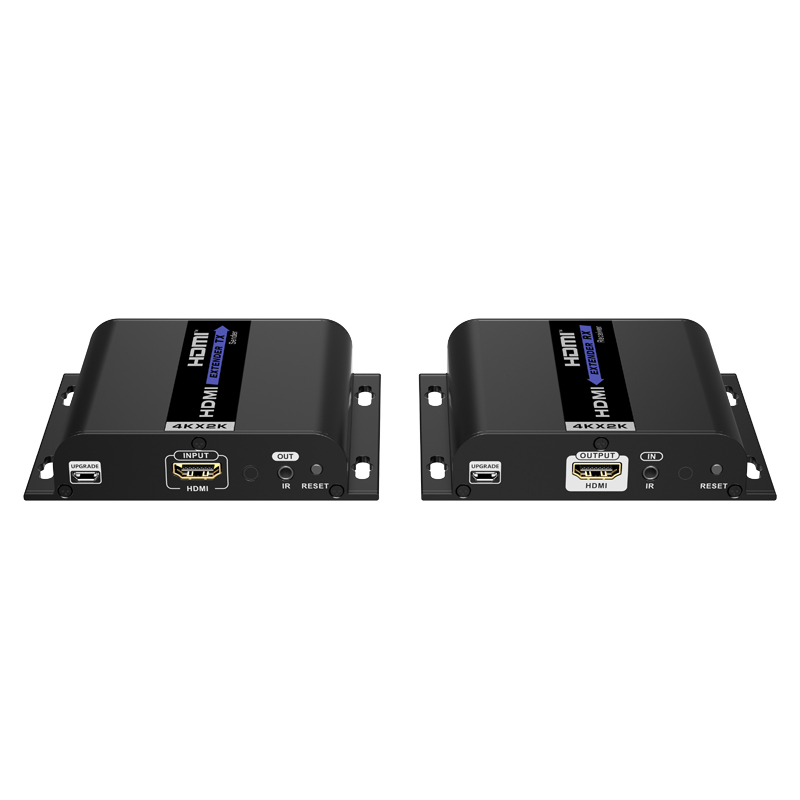

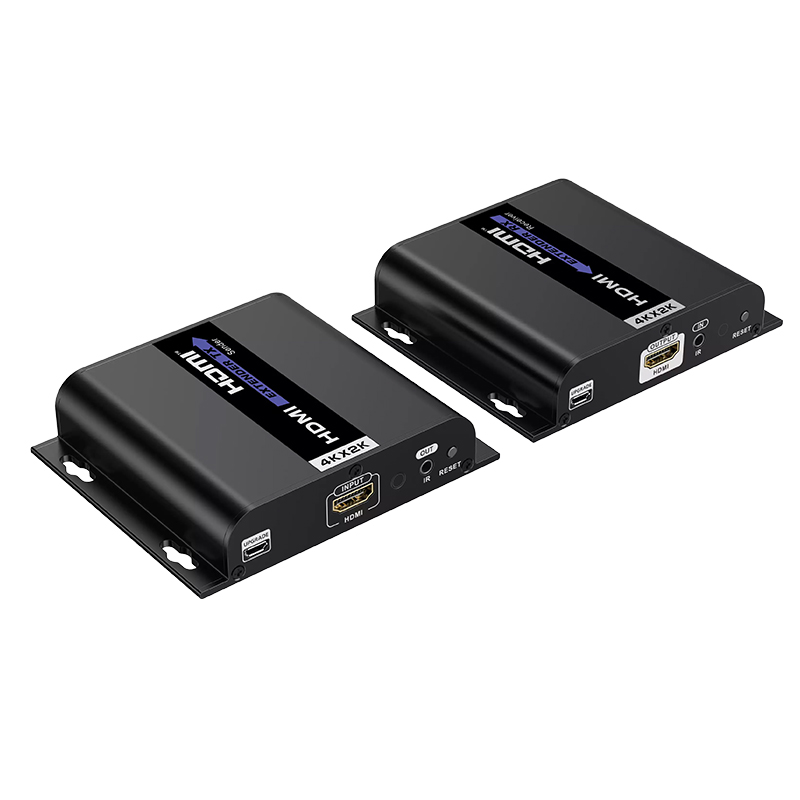

LKV683-5.0 is a kit for transmitting video signals over a local network with a resolution of up to 4096×2160 and a maximum range of 120 m.
Transmitters and receivers are connected to the local network like any other network devices: via a direct cable to the router, via network wall sockets or routers (switches). The cable used is the same as for connecting computers to the network. Transmitters and receivers are connected to the same subnet. The transmission range and characteristics are determined by the requirements of the IEEE 802.3 (Ethernet) standard, the transmission protocol works over IP.
Specifications:
– Maximum resolution 4096×2160@30 at 120 m via cat.6 cable; 3840×2160@30 at 80 m via cat.5 cable; 3840×2160@30 at 100 m via cat.5e cable; 1920×1080@60 at 120 m via 100 Mbps local network
– Maximum number of transmitters – 1, connected devices – 253
– Supports transmission of IR signal from the remote control from the display to the source to control the recorder or media player
– Increasing the number of receivers via a 100 Mbps LAN switch
– HDMI compliance HDMI1.4
– HDCP compliance HDCP1.4
– Video support: 4096×2160@24/30Hz, 3840×2160@24/30Hz, 1080P@24/25/30/50/60Hz, 720P@50/60Hz, 576P@60Hz, 480P@60Hz, 1920×1200, 1680×1050, 1600×900,
1280×1024, 1280×960, 1280×720, 1024×768, 800×600″
– Network Cable: UTP/STP Cat5/5e/6
– Transmission distance: CAT5 80m/CAT5E 100m/CAT6 120m
– Input DDC signal: Supports 20~60KHz IR devices
– Mechanical: Transmitter Receiver
– Dimensions(L×W×H mm): 107.3(L)*94(W)*23.7(H)mm
– Net weight: TX: 175g RX: 170g
– Power supply: 5V/1A
– Power consumption: 3.5W 2.5W
– Operation temperature: 0℃~60℃
– Protection: Lightning protection/Surge protection/ESD protection
