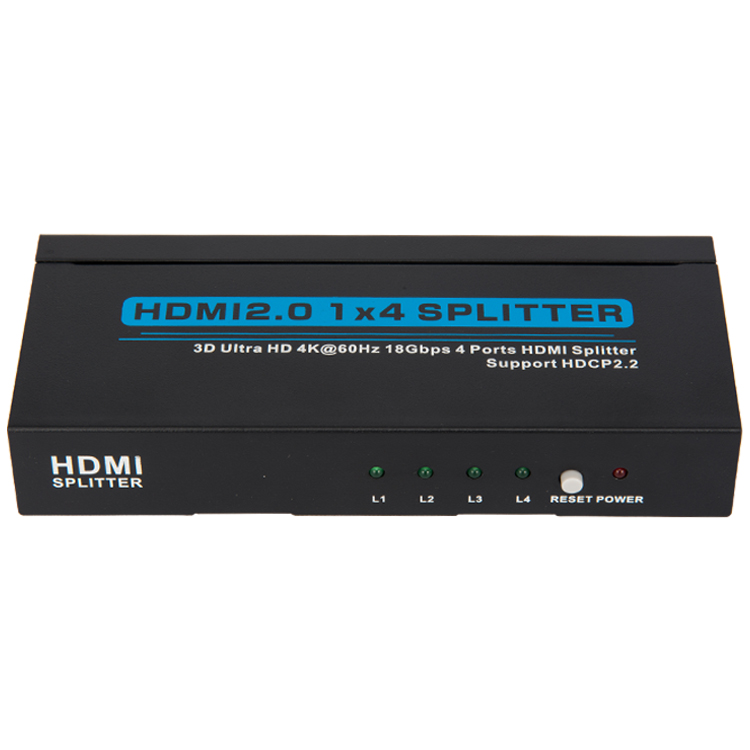

1×4 HDMI Splitter, 4Kx2K@60Hz, EDID, HDCP 2.2, YUV 4:4:4, 104-4K60

$79.99 $59.99

Description

HDMI Splitter is a product which can distribute HDMI signal without loss to one or more high definition display device such as HDTV. It can optimize your home theatre system to the best effect.

HDMI signal is distributed from source device such as DVD, Satellite Receiver, Set-Top Box, DV Camera, A/V Receiver and other HDMI enabled device to high definition display device such as HDTV and HDMI Flat panel Display.



2.0 Features:

1.     Fully HDMI 2.0 specification compliant. It is applicable to source device and high definition display device ,such as DVD and  HDTV which have HDMI Ports or digital ports and are compliant with HDCP1.1/1.2/1.4/2.2 protocol.

2.     Support high resolutions:480i/p,576i/p,720i/p,1080i/p,4Kx2K@60Hz.YUV(YCBCR): 4:4:4

3.     Support 30/36 dark, extended color space support, including:SYCC601、Adobe RGB、AdobeYCC601

4.     Blu-ray DVD 24/50/60fs/HD-DVD/xvYCC.

5.     Audio formats DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3 and DSD.

6.     Extend the transmission distance and improve transmission signal.

7.     Compatible with DVI by using HDMI to DVI  adapter.

8.     Plug- and -play.

9.     Metal casing design and overall shielding without signal interference.

10. Led indicates signal and power mode.

11. Power supply (please refer to technical parameter).

12. Support 3D.



3.0 Packaging accessories:

1. HDMI 1×2 Splitter————————————————1 Pcs

2. 5V DC Power Adaptor——————————————-1 Pcs

3. User Manual——————————————————-1 Pcs



4.0 Technical parameters

HDMI Source Input Port——————————————————————-1

Display Device Output Port—————————————————————2

Source Port Connector—————————————————-19 PIN HDMI

Display Device Port Connector——————————————19 PIN HDMI

HDCP Compliant————————————————————————YES

Single Link Range————————————————————–4096×2160

Input Video Signal——————————————————0.5-1.0 Volts P-P

Input DDC Signal——————————————————–5 Volts P-P(TTL)

Deep Color——————————————————————————48 bit

HDMI Version———————————————————————–HDMI2.0

Bandwidth———————————————————————Up to 340Mhz

Signal Speed—————————————————————–Up to 18Gbps

The length of input cable——————————PS4≤10M;BLUE DVD≤10M

The length of output cable———————————————————–≤10M

The cable standard—————————————————–28AWG HDMI2.0

Vertical Frequency Range————————————————————-60Hz

Power Consumption(max.)——————————————————–3.5Watts

Operation Temperature————————————————————0℃-70℃

Working Voltage————————————————————————DC 5V

Power Adaptor————————————————————————–5V 2A

Net Weight——————————————————————————0.39Kg

Dimension: L*W*H(mm)——————————————————–150x64x25



5.0 Panel Introduction

(1)DC Power input port

(2)HDMI output port 4

(3)HDMI output port 3

(4)HDMI input port

(5)HDMI output port 2

(6)HDMI output port 1

(7)HDMI output 1 indicator

(7)HDMI output 2 indicator

(7)HDMI output 3 indicator

(7)HDMI output 4 indicator

(8)Signal reset push button

(9)Power indicator



6.0 Connection diagram



6.01 Connect the HDMI cable between signal source and input port of Splitter.

6.02 Connect the HDMI cable between output port of Splitter and HDTV.

6.03 Connect splitter and power adapter.

6.04 Open the signal source and the power of HDTV, then it works.

Explanation: With different brands of the input or output device, the length of the

connecting cables will differ too.
