Description

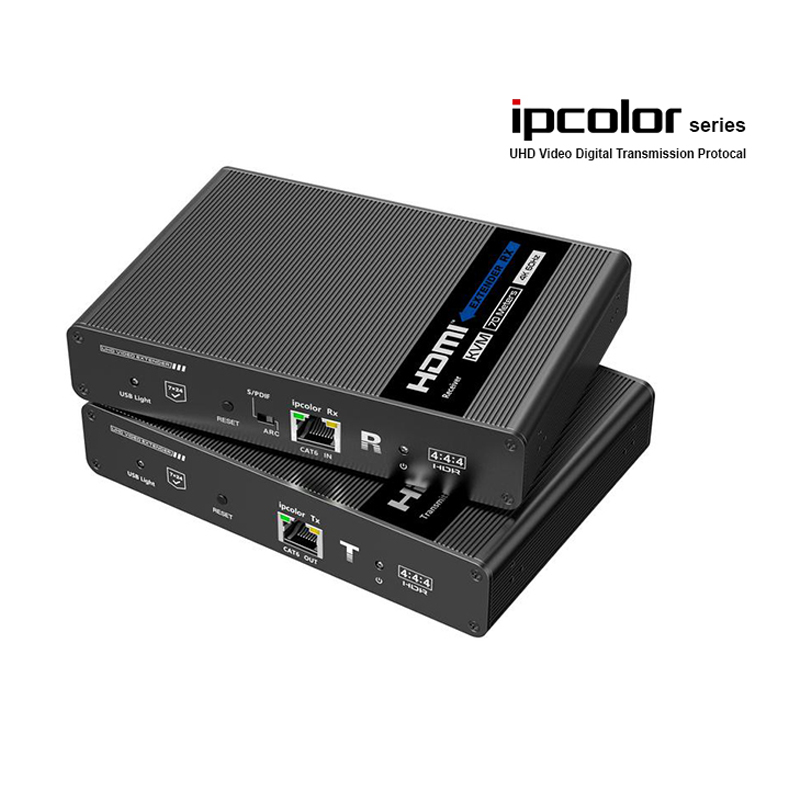

This HDMI Extender kit includes a transmitter unit and a receiver unit, allows HDMI signal to be transmitted up to 70 meters at 4K resolution using a CAT6/6A/7 network cable. It has KVM function and It is perfect for outdoor advertising, video clips, monitor system, home entertainment, and conference, etc…
-Zero-latency
-ipcolor technology
-One to one connection
-4K@60Hz HDMI signal can be transmitted 70 meters through a CAT6/6A/7 network cable
-The receiver can extract the digital audio from the transmitter through the S/PDIF port
-Supports audio formats (Dolby True HD 7.1 CH, Dolby Digital 5.1 CH)
-Supports HDR (YUV4:4:4), EDID passback

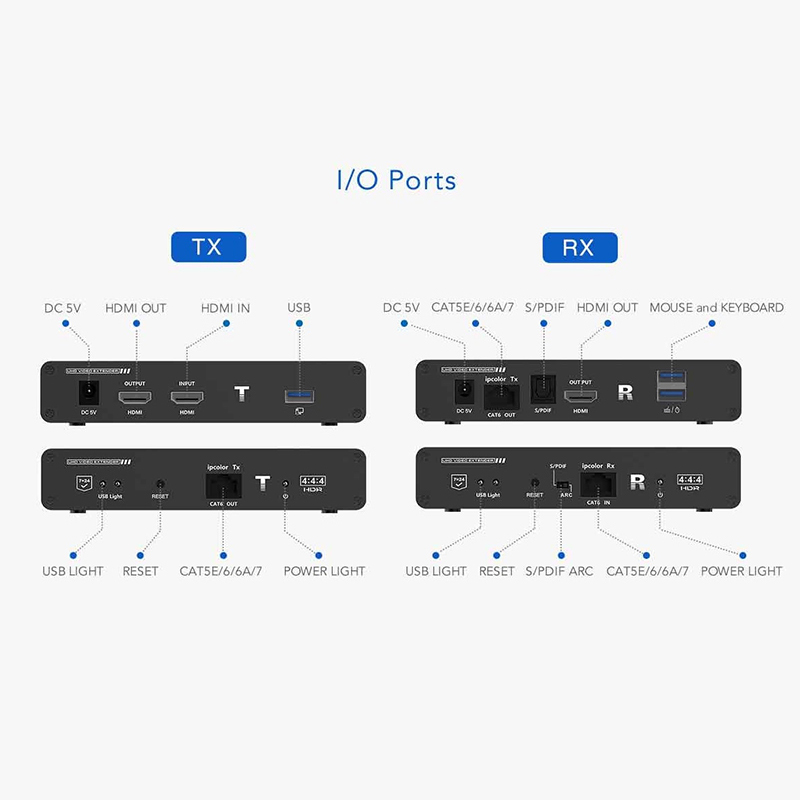

-Transmitter support one HDMI loop-out
-Support KVM function.
-Lighting protection, surge protection, ESD protection
Power Supply: Voltage Current DC5V-12V
Power Consumption: TX<4W, RX<4W
0.5~1.5Vp-p (TMDS)
HDMI Performance & Interference: HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.2
HDMI Resolution:480i@60Hz, 480p@60Hz, S76i@S0Hz, 576p@50Hz,720p@S0/60Hz, 1080i@50/60Hz, 1080p@50/60Hz,
3840×2160@24/25/30/50/60Hz, 4096×2160@24/25Hz, 1280×960,1280×800, 1280×768, 1680×1050, 1360×768, 1366×768, 1600×900,1024×768, 800×600
Supports audio formats: LPCM/DTS-HD/DTS-Audio/Dolby True HD 7.1 CH/Dolby Digital 5.1 CH
Input & output TMDS signal: 0.7~1.2Vp-p (TMDS)
Input & output DDC signal: 5Vp-p (TTL)
Input cable length: ≤8m (AWG24)
Output cable length: ≤8m (AWG24)
Transmission Distance: CAT6/6A/7 ≤70m
Protection Level: Electrostatic protection of the whole unit Contact discharge level 3
Air discharge level 3 implementation of the standard: IEC61000-4-2
Operating Environment:
Working Temperature -20°C~60°C
Storage Temperature -30°C~70°C
Humidity (no condensation) 0%~90% RH
Physical Properties:
Dimensions (LxWxH) 150x107x28.4mm
Material Aluminium
Colour Black
Weight TX: 260g, RX: 260g
