Description
This HDMI2.0 KVM switch support a set of keyboard, mouse and monitor to control 4 HDMI computer. You can connect 4 HDMI source into our HDMI KVM switch. The resolution up to 4096×2160/3840×2160 @60Hz(4: 2: 0).
Features:
- 4 input 1 output HDMI KVM switch
- Plug and play
- Support USB hub. The USB hub port support any USB2.0 devices.
- Support Hot-plug.

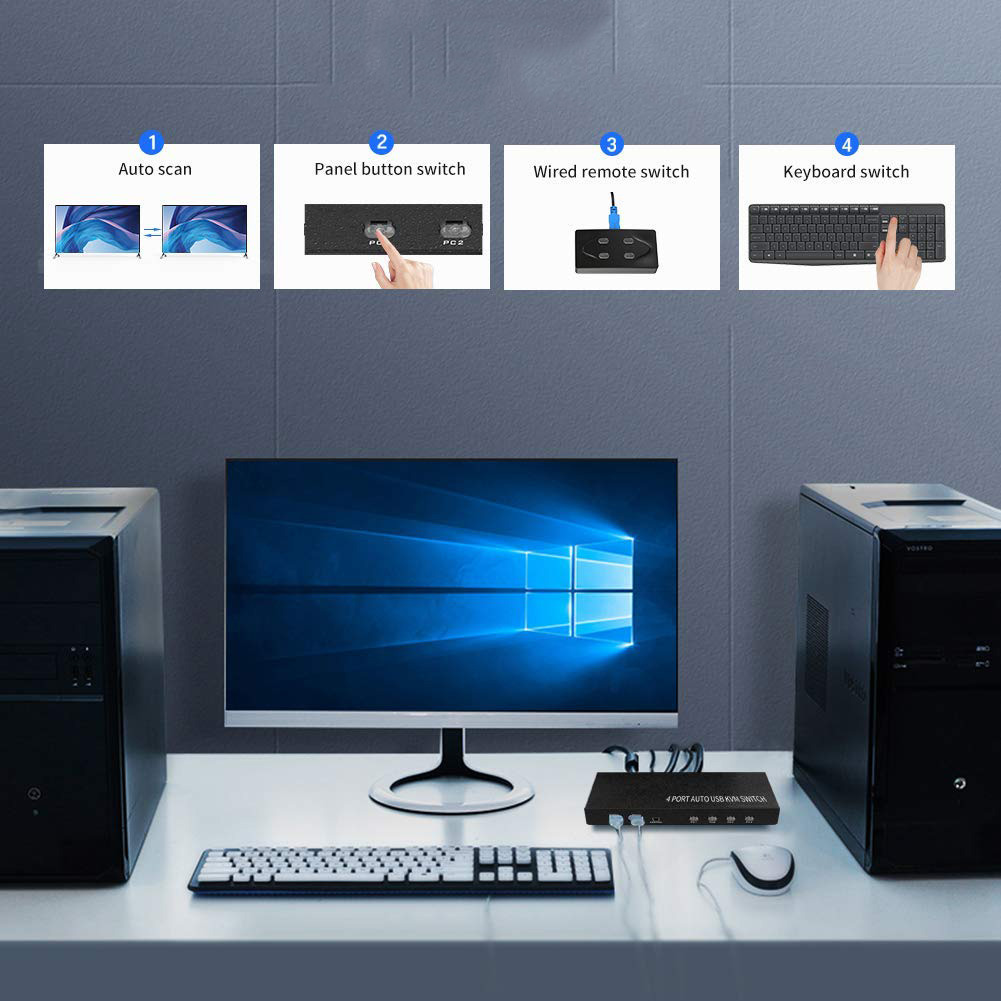

- Port selected: desktop controller, hot-key, press button.
- Resolution up to 4096×2160/3840×2160 @60Hz(4: 2: 0)
- Support HDMI2.0
Specification:
| Controllable number of hosts | 4 |

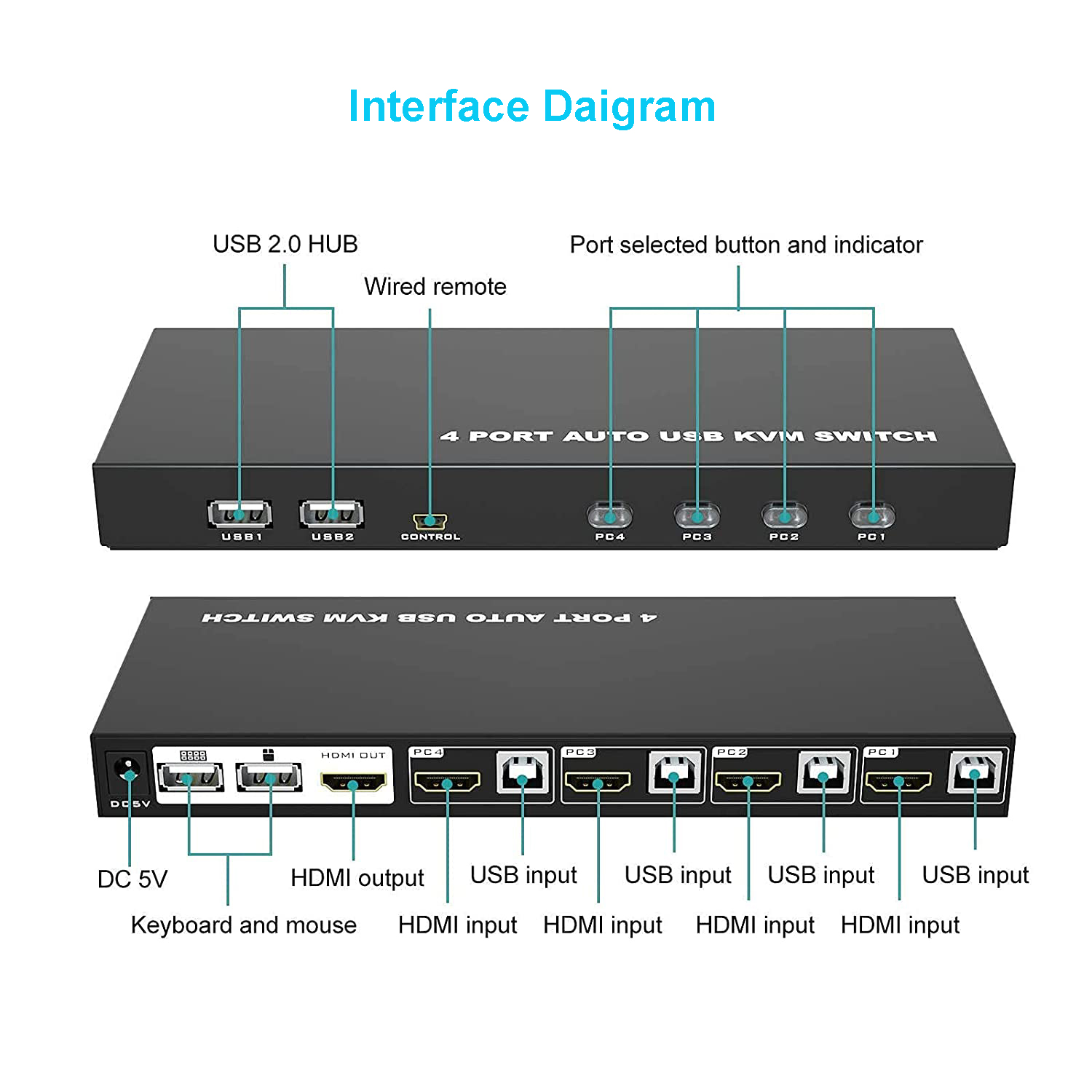

| Input interface | 4* HDMI+4* USB-B |
| Console interface | 1* HDMI +4* USB-A |
| Port selected | Press-button, desktop controller, Hot-key |
| Keyboard simulation | USB |
| Mouse simulation | USB |
| Resolution | Up to 4096×2160/3840×2160@ 60 Hz(4:2:0) |
| HDMI version | HDMI2.0 HDCP2.2 |
| Operation Temp. | 0℃ -50℃ |
| Storage Temp. | -20 – 60 ℃ |
| Humidity | 0-80% RH, Non-condensing |

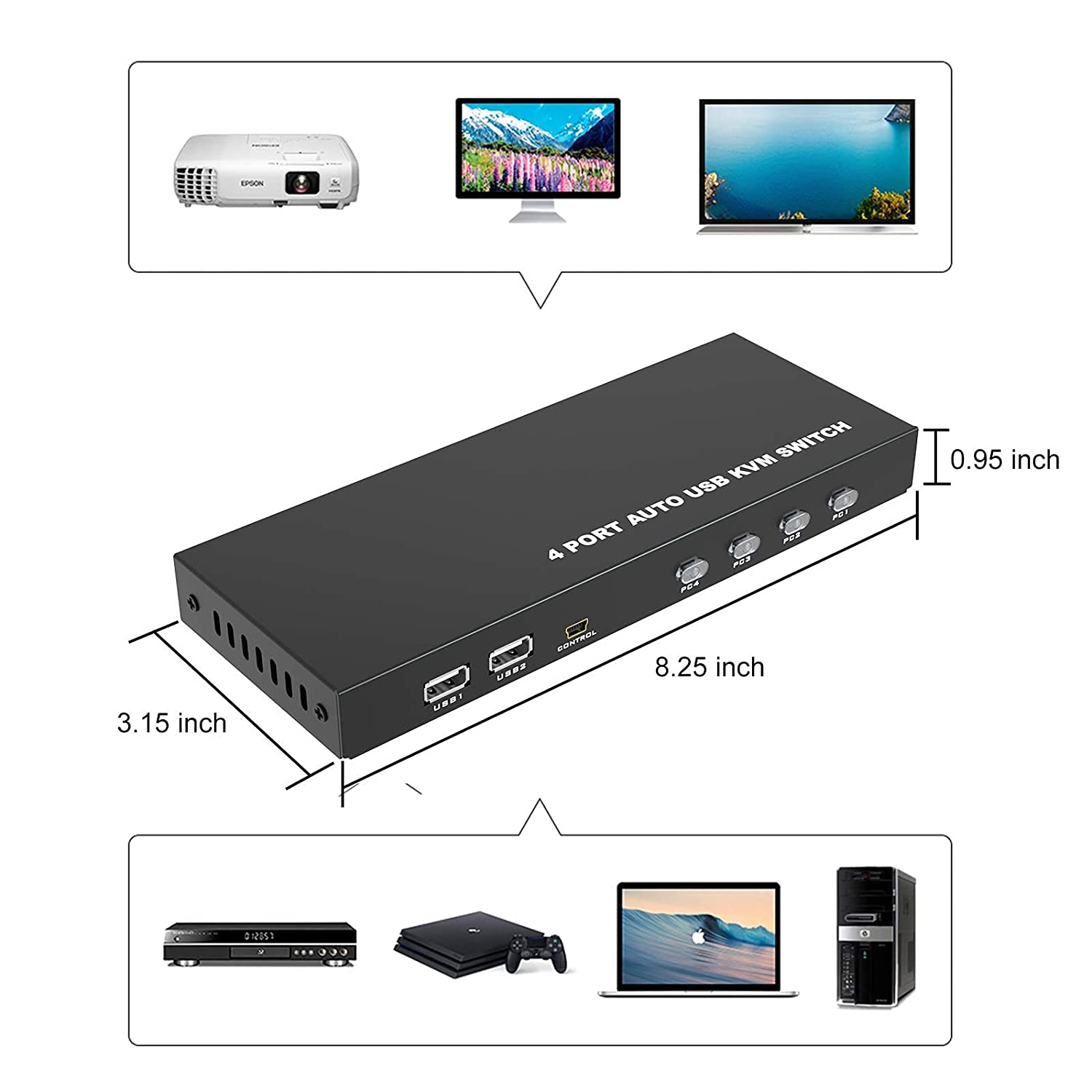

| Dimension | 21* 8*2.2cm |
| Housing | Metal |

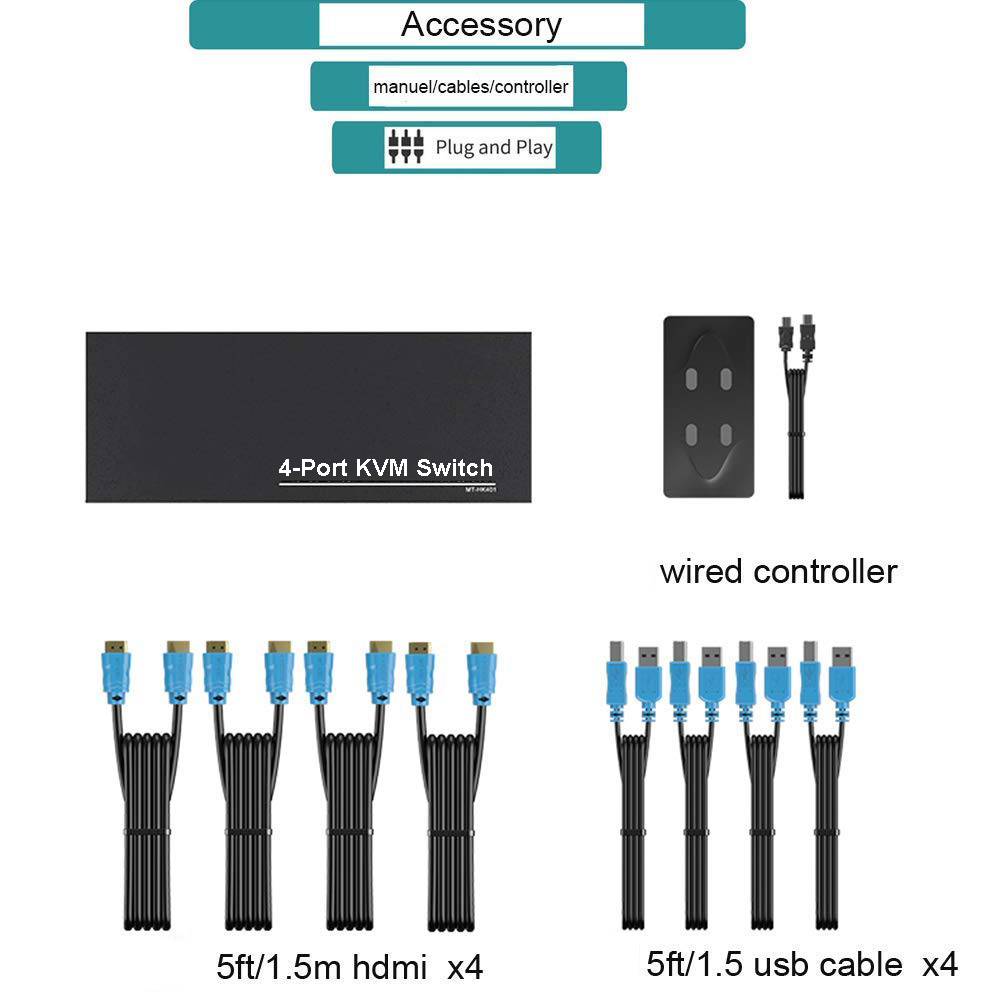

Packing List:

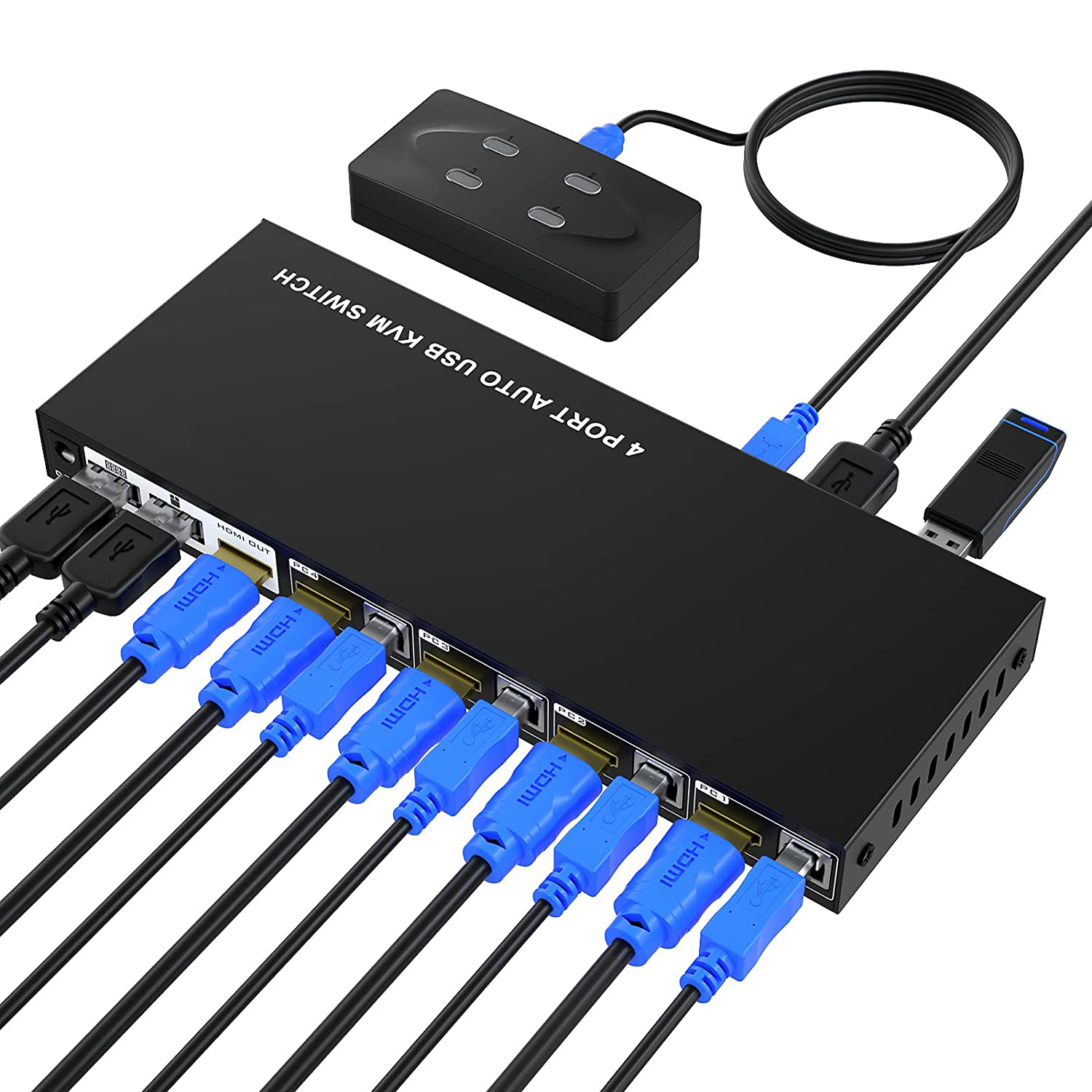

1x 4×1 HDMI KVM Switch
4*x 1.5m KVM cable(HDMI to HDMI and USB-A to USB-B)
1x User manual
1x Desktop controller
