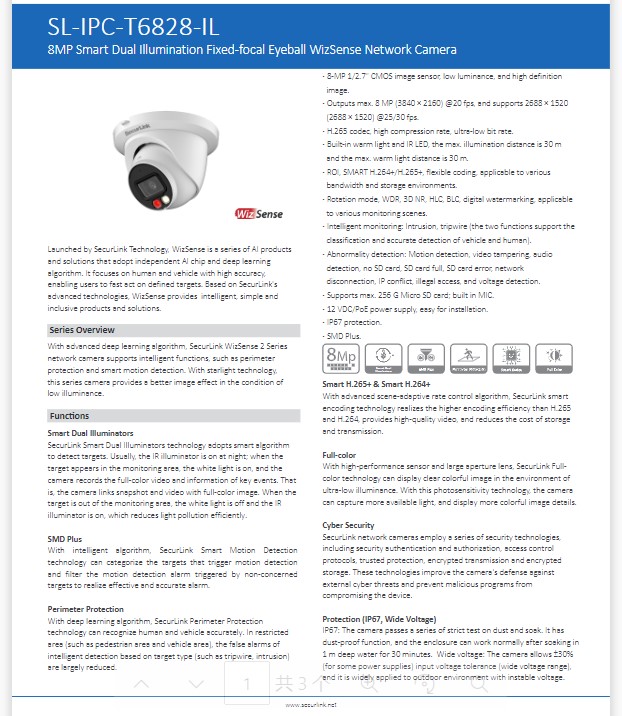

Dahua OEM 8MP SMART DUAL ILLUMINATION FIXED-LENS TURRET NETWORK FDIPC-T6828-IL, white/black

$199.00 $169.00

Category:

Description

•8-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.

•Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 × 1520 (2688 × 1520) @25/30 fps.

•H.265 codec, high compression rate, ultra-low bit rate.

•Built-in warm light and IR LED, the max. illumination distance is 30 m and the max. warm light  distance is 30 m.

•ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.

•Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various  monitoring  scenes.

•Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).

•Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage                    detection.

•Supports max. 256 G Micro SD card; built in MIC.

•12 VDC/PoE power supply, easy for installation.

•IP67 protection.

•SMD Plus.

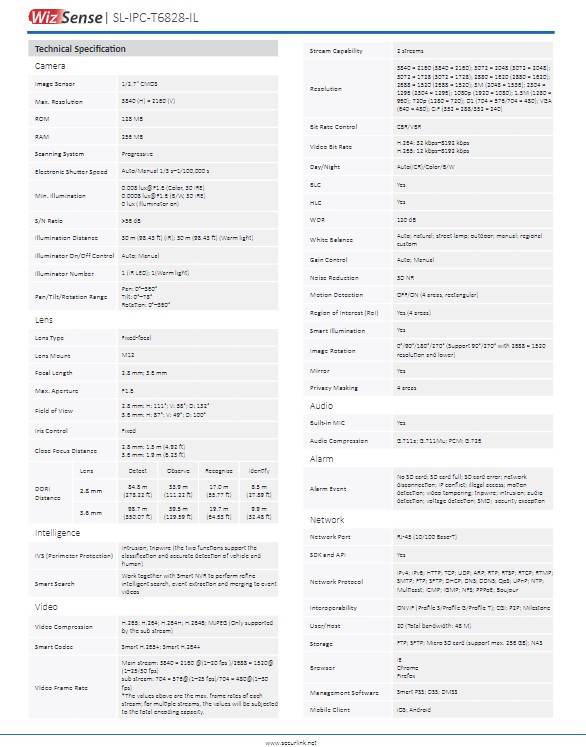

Camera
Image Sensor1/2.7″ CMOS
Max. Resolution3840 (H) × 2160 (V)
ROM128 MB
RAM256 MB
Scanning SystemProgressive
Electronic Shutter SpeedAuto/Manual 1/3 s–1/100,000 s
Min. Illumination0.008 lux@F1.6 (Color, 30 IRE)
0.0008 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)
S/N Ratio>56 dB
Illumination Distance30 m (98.43 ft) (IR); 30 m (98.43 ft) (Warm light)
Illuminator On/Off ControlAuto; Manual
Illuminator Number1 (IR LED); 1(Warm light)
Pan/Tilt/Rotation RangePan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Lens MountM12
Focal Length2.8 mm; 3.6 mm
Max. ApertureF1.6
Field of View2.8 mm: H: 111°; V: 58°; D: 132°
3.6 mm: H: 87°; V: 49°; D: 100°
Iris ControlFixed
Close Focus Distance2.8 mm: 1.5 m (4.92 ft)
3.6 mm: 1.9 m (6.23 ft)
DORI DistanceLensDetectObserveRecognizeIdentify
2.8 mm84.8 m

(278.22 ft)

33.9 m

(111.22 ft)

17.0 m

(55.77 ft)

8.5 m

(27.89 ft)

3.6 mm98.7 m

(350.07 ft)

39.5 m

(129.59 ft)

19.7 m

(64.63 ft)

9.9 m

(32.48 ft)

Intelligence
IVS (Perimeter Protection)Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Smart SearchWork together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Video CompressionH.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart CodecSmart H.265+; Smart H.264+
Video Frame RateMain stream: 3840 × 2160 @(1–20 fps )/2688 × 1520@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Stream Capability2 streams
Resolution3840 × 2160 (3840 × 2160); 3072 × 2048 (3072 × 2048); 3072 × 1728 (3072 × 1728); 2880 × 1620 (2880 × 1620); 2688 × 1520 (2688 × 1520); 3M (2048 × 1536); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate ControlCBR/VBR
Video Bit RateH.264: 32 kbps–8192 kbps
H.265: 12 kbps–8192 kbps
Day/NightAuto(ICR)/Color/B/W
BLCYes
HLCYes
WDR120 dB
White BalanceAuto; natural; street lamp; outdoor; manual; regional custom
Gain ControlAuto;Manual
Noise Reduction3D NR
Motion DetectionOFF/ON (4 areas, rectangular)
Region of Interest (RoI)Yes (4 areas)
Smart IlluminationYes
Image Rotation0°/90°/180°/270° (Support 90°/270° with 2688×1520 resolution and lower)
MirrorYes
Privacy Masking4 areas
Audio
Built-in MICYes
Audio CompressionG.711a; G.711Mu; PCM; G.726
Alarm
Alarm EventNo SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception
Network
Network PortRJ-45 (10/100 Base-T)
SDK and APIYes
Network ProtocolIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour
InteroperabilityONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone
User/Host20 (Total bandwidth: 48 M)
StorageFTP; SFTP; Micro SD card (support max. 256 GB); NAS
BrowserIE
Chrome
Firefox
Management SoftwareSmart PSS; DSS ;DMSS
Mobile ClientiOS; Android
Cyber SecurityConfiguration encryption; trusted execution; Digest; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification

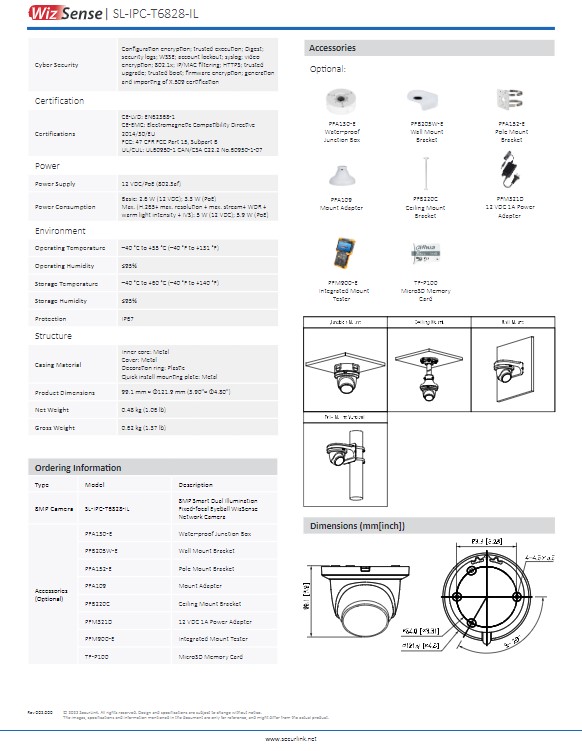

Certification
CertificationsCE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Power
Power Supply12 VDC/PoE (802.3af)
Power ConsumptionBasic: 2.6 W (12 VDC); 3.3 W (PoE)
Max. (H.265+ max. resolution + max. stream+ WDR + warm light intensity + IVS): 5 W (12 VDC); 5.9 W (PoE)
Environment
Operating Temperature–40 °C to +55 °C (–40 °F to +131 °F)
Operating Humidity≤95%
Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Storage Humidity≤95%
ProtectionIP67
Structure
Casing MaterialInner core: Metal
Cover: Metal
Decoration ring: Plastic

Quick install mounting plate: Metal

Product Dimensions99.1 mm × Φ121.9 mm (3.90″× Φ4.80″)
Net Weight0.48 kg (1.06 lb)
Gross Weight0.62 kg (1.37 lb)
