Description
Description
– 8*PoE Power Supply Ports
– 2*Gigabit Uplink Ports
– Supports PoE and VLAN Function
– Supports 250m / 820 feet Long Distance
– Supports POE+
Information

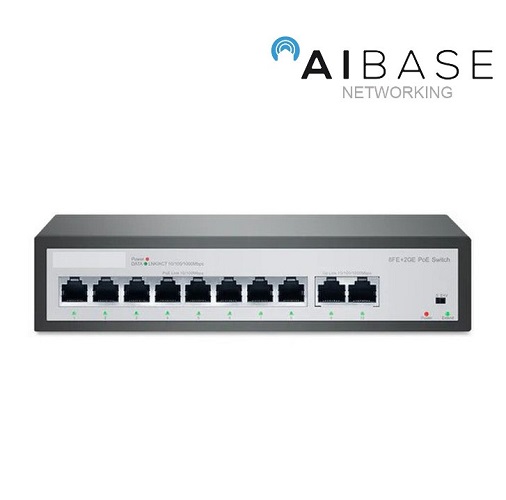

NT-AI-SW-8P2UG-120W is a Fast and Gigabit Ethernet PoE Switch, which provides 8*10/100Mbps
PoE ports and 2*1000Mbps Uplink Ports.
The PoE ports comply with IEEE 802.3af/at standards and supports two operating modes
(Standard, VLAN + Extend). MAX power 120W.
Features
8*PoE Power Supply Ports
2*Gigabit Uplink Ports
Support PoE and VLAN Function
Supports 250m Long Distance Transmission Function
Product Specification
Port
1-8:PoE Fast Ethernet Ports
9-10:Gigabit Uplink Ports
Input Voltage 110Vac-240Vac
Input Frequency 47Hz-63Hz
Input Current MAX. 2.5A
Standby Consumption MAX. 4W (no cameras or loads connected to the switch)
Inrush Current MAX. 100A(AC input 110Vac,cold start)
Standard IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab
Network Media(Cable) 10/100/1000BASE-TX: UTP category 5e, 6 cable
Signal Distance ≤250m
Backplane Bandwidth 12Gbps
Transfer Mode
10BASE-tx:14880pps/port
100BASE-tx:148800pps/port
1000BASE-tx:1488000pps/port
MAC Address Table 2K
Function
Power supply priority mechanism,fast and forwarding,MAC automatic learning and aging
IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control
Packet Forward Speed 8.92Mpps
PoE Standard IEEE 802.3af/at
PoE Port Output Single Port: ≤30W
PoE Output Voltage DC52V±5%
PoE Transmission Wire Core 1/2+、3/6-
POE Transmission
Distance ≤250m
TORONTO
80 SHIELDS COURT, MARKHAM, ON L3R 9T5
TEL : 1-877-966-1691
VANCOUVER
UNIT 1163, 11871 HORSESHOE WAY, RICHMOND BC,
V7A5H5 TEL : 604-283-1668
USA
125 North Sunset Avenue, City of Industry, CA, 91744
TEL: 1-877-946-6688 | |
Power Transmission Media 10/100/1000BASE-TX: UTP category 5e, 6 cable
POE Total Power MAX:120W
Operating Temperature -10°C-55°C
Storage Temperature -40°C-85°C
Operating Humidity 10%-90% (non-condensed)
Storage Humidity 5%-95% (non-condensed)
Dimensions(L*W*H)
Bare metal dimensions: 200mm*118mm*44mm
Package size: 230mm*190mm*70mm
Overall Weight
Bare metal: 650g±5%
Packaged: 900g±5%
Packing List
1 Earmuff Bag
1 Specification
1 Power Cord
