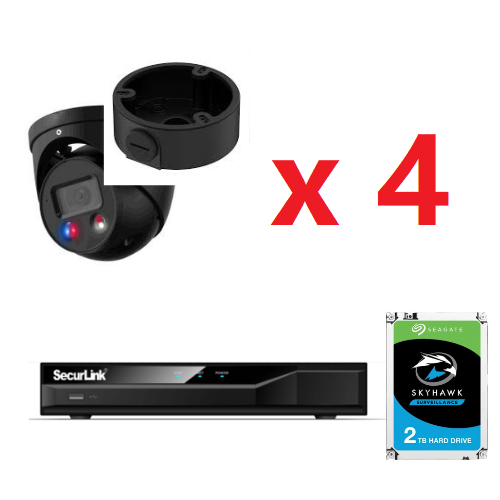

Dahua OEM 4CH KIT Securlink 4pc 4k ip DUAL ILLUMINATION ACTIVE DETERRENCE FIXED-LENS TURRET camera with junction box,SL-IPC-T7828C-V2,4ch NVR W/2TB HDD

$1,284.00

Category:

Description

DAHUA OEM SL-IPC-T7828C-V2, 8MP SMART DUAL ILLUMINATION ACTIVE DETERRENCE FIXED-LENS TURRET WIZSENSE NETWORK CAMERA

QUICK OVERVIEW

•8 MP 1/2.8″ CMOS image sensor, low luminance, and high definition image.

•Outputs max. 8 MP (3840 × 2160)@25/30 fps.

•H.265 codec, high compression rate, ultra-low bit rate.

•Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.

•ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

•Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

•Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human).

•Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 256 G Micro SD card; buit-in dual MICs; 1-ch speaker; support two-way talk.

•12 VDC/PoE power supply.

•IP67 protection.

•Sound and light alarm (red and blue lights).

•SMD 3.0.

•One press arming/disarming through alarm input.

Dahua OEM 4CH 4POE 4K AI NVR SL-NVR-5104-L

New 4.0 user interface, Security baseline 2.1
H.264, H.265, Smart H.264+, and Smart H.265+. H.265 auto switch
Max. decoding capability: 8 × 1080p@30 fps. Supports adaptive decoding
Supports mainstream cameras of ONVIF and RTSP protocols
P2P remote surveillance, video play on mobile device
VGA/HDMI simultaneous video output, maximum resolution of HDMI is 4K
AI by Camera: Face detection, perimeter protection, IVS, people counting, heat map, and SMD
Supports remote configuration and management of IPC, such as setting parameters, getting information, and upgrading IPC of the same model in batches

System
Main ProcessorIndustrial-grade embedded processor
OSEmbedded Linux
Operation InterfaceWeb/operating in local GUI
Perimeter Protection by Camera
Performance4 channels
AI SearchSearch for pictures by channel, time and event type
Face Detection by Camera
Performance4 channels
Face Attributes6 attributes: Gender, age, glasses, expression, mouth mask, and beard
AI SearchSearch for pictures by channel, time and face attributes
SMD Plus by Camera
Performance4 channels
AI SearchSearch by target classification (human, vehicle)
Video
Access Channel4
Network BandwidthAccess: 80 Mbps; Storage: 80 Mbps; Forward: 60 Mbps
Resolution8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1
Decoding Capability8 × 1080p@30 fps
Video Output1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI
Multi-screen Display1 , 4 views
Third-party Camera AccessONVIF; RTSP
Compression
VideoSmart H.265/H.265/Smart H.264/H.264/MJPEG
AudioPCM/G711A/G711U/G726/AAC
Network
Network ProtocolHTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; DDNS; FTP; Alarm Server; IP Search (Support Dahua IP camera; DVR; NVS; etc.); P2P; auto register
Mobile Phone AccessAndroid; iOS
InteroperabilityONVIF(profile T/S/G); CGI; SDK
BrowserChrome; IE9 or later; firefox
Record Playback
Multi-channel PlaybackUp to 4 channels for playback
Record ModeManual record; alarm recording; SMD recording; smart recording
StorageLocal HDD; network
BackupUSB storage device
Playback Function1. Play/pause/stop/slow/quick/backward/by frame
2. Full screen, backup (video clip/file), partial zoom in, and audio on/off
Storage
Disk GroupYes
Alarm
General AlarmMotion detection, privacy masking, video loss, scene changing, PIR alarm, IPC external alarm
Anomaly AlarmCamera disconnection, storage error, disk full, IP conflict, MAC conflict, login locked, and cybersecurity exception
Intelligent AlarmFace detection, perimeter protection (intrusion and tripwire), IVS, people counting, heat map, and SMD alarms
Alarm LinkageRecording, snapshot, audio, buzzer, log, preset, and email
External Port
Audio Input1 × RCA input
Audio Output1 × RCA output
HDD1 SATA III ports, up to 10 TB for a single HDD. The maximum HDD capacity varies with environment temperature
USB2 (1 × front USB2.0; 1 × back USB2.0)
HDMI1 (supports up to 4K resolution output)
VGA1
Network1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port
POE4
General Parameter
Power Supply48 V/53 VDC, 1.25 A/1.13 A
Power Consumption< 10 W (HDD not included, idling)
Total output power of PoE is 36W, the maximum output power of a single port is 25.5W
Net Weight0.86 kg (1.90 lb)
Gross Weight1.86 kg (4.10 lb)
Product Dimensions260 mm × 232.3 mm × 50.3 mm (10.24″ × 9.14″ × 1.98″) (W × L × H)
Package Dimensions117 mm × 373 mm × 307 mm (4.61″ × 14.69″ × 12.09″) (W × L × H)
Operating Conditions–10 °C to +55 °C (+10 °F to +131 °F)
Storage Conditions0 °C to +40 °C (32 °F to 104 °F)
Operating Humidity10℅~93℅
Storage Humidity30%~85%
Operating Altitude3000 m (9842.52 ft)
InstallationDesktop mounted
CertificationsCE: EN62368-1; EN55032,EN55024, EN55035, EN61000-3-2, EN61000-3-3 EN50130-4
FCC: Part 15 Subpart B
