Sale!

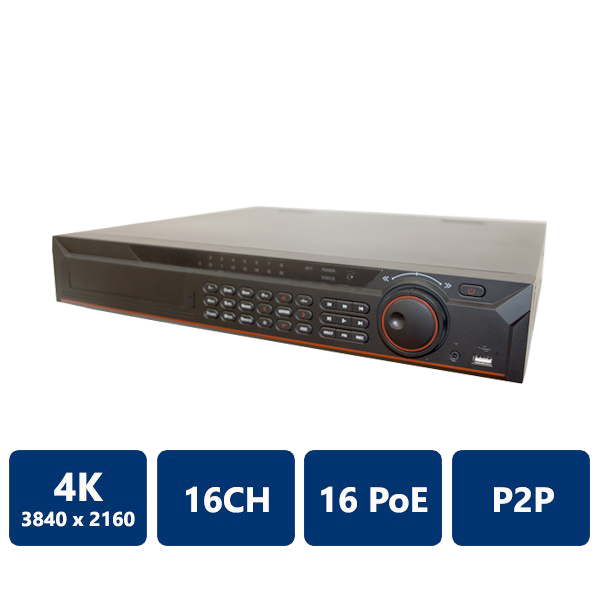

Dahua oem 16 Channel 1.5U 16PoE 4K&H.265 Lite Network Video Recorder

$899.00 $799.00

Description

· H.265/H.264 codec decoding

· Max 200Mbps Incoming Bandwidth

· Up to 8MP Resolution for Preview and Playback

· HDMI/VGA simultaneous video output

· Support IPC UPnP, 16PoE ports

· Support ANR technology to enhance the storage

reliability when the network break down

Technical Specification
System
Main ProcessorQuad-core embedded processor
Operating SystemEmbedded LINUX
Display
Interface1 HDMI,1VGA,SPOT(configurable)
Resolution3840×2160, 1920×1080, 1280×1024,

1280×720, 1024×768

Multi-screen Display1/4/8/9/16
OSDCamera title, Time, Video loss, Camera lock, Motion
detection, Recording
Video Detection and Alarm
Trigger EventsRecording,FTP, Snapshot,PTZ,BuzzerTour, Alarmand ScreenOut,VideoTips  Push, Email,
 Video DetectionMotion Detection, MD Zones: 396 (22 Ã— 18), Video
Alarm input16 Channel, Low Level Effective, Green Terminal Interface
Relay Output4 Channel, NO/NC Programmable, Green Terminal Interface
Playback and Backup
Playback1/4/8/16
Search ModeTime/Date, Alarm, MD and Exact Search (accurate to second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device/Network
Storage
Internal HDDSATA III Ports, up to 6TB capacity for each HDD
HDD ModeSingle
eSATAN/A
Auxiliary Interface
USB2 USB Ports (1 USB 2.0, 1 USB 3.0)
RS2321 Port, for PC Communication and Keyboard
RS4851 Port, for PTZ Control
Audio and Video
IP Camera Input16 Channel
Two-way Talk1 Channel Input, 1 Channel Output, RCA
Recording
 Compression H.265/H.264
Resolution8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc.
 Record Rate200Mbps
Bit Rate16Kbps ~ 20Mbps Per Channel
Record ModeManual, Schedule (Regular, Continuous), MD
(Video detection: Motion Detection, Video Loss,
Tampering), Alarm, Stop
Record Interval1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30
sec, Post-record: 10 ~ 300 sec
Network
Interface1 RJ-45 Port (1000M)
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP,
NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm
Server, IP Search (Support Dahua IP camera, DVR,
NVS, etc.)
Max. User Access128 users
Smart PhoneiPhone, iPad, Android
InteroperabilityONVIF 2.4.1, CGI Conformant
Power SupplyAC100V ~ 240V, 50 ~ 60 Hz
Power ConsumptionNVR: <13.7W (Without HDD)

PoE: Max 25.5w for single port, 150w in total

Environmental
Operating Conditions-10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa
Storage Conditions-20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH
Construction
Dimensions1.5U, 440mm×411.1mm×76mm (17.3″ x 16.2″ x 3.0″)
Net Weight4.7kg (10.4lb) (without HDD)
Gross Weight7.5kg(16.5 lb)(without HDD)

Additional information

Weight16 lbs
Dimensions17.5 × 16.2 × 3 in
