Description

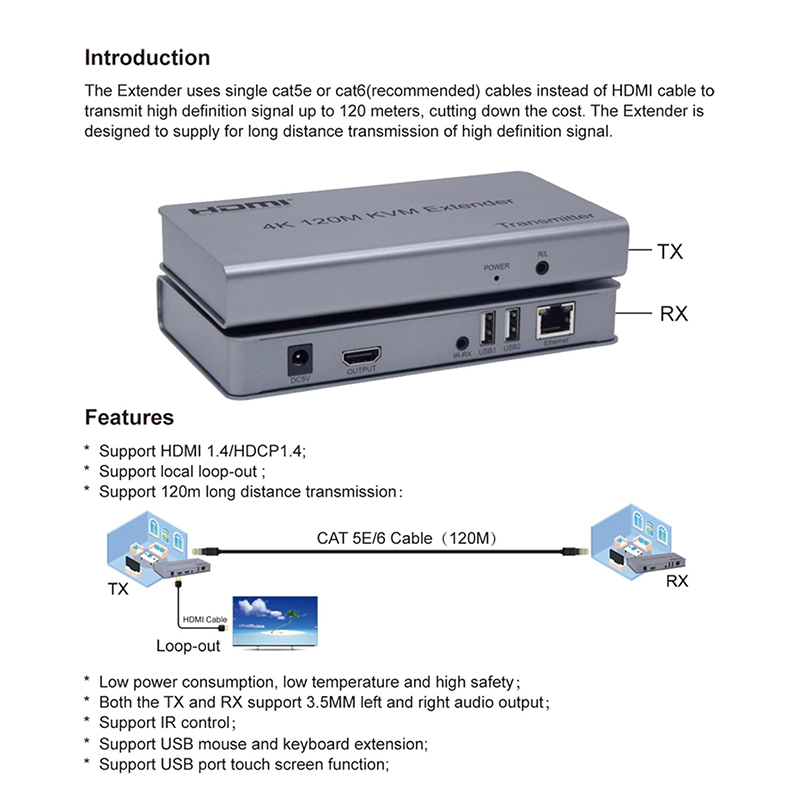

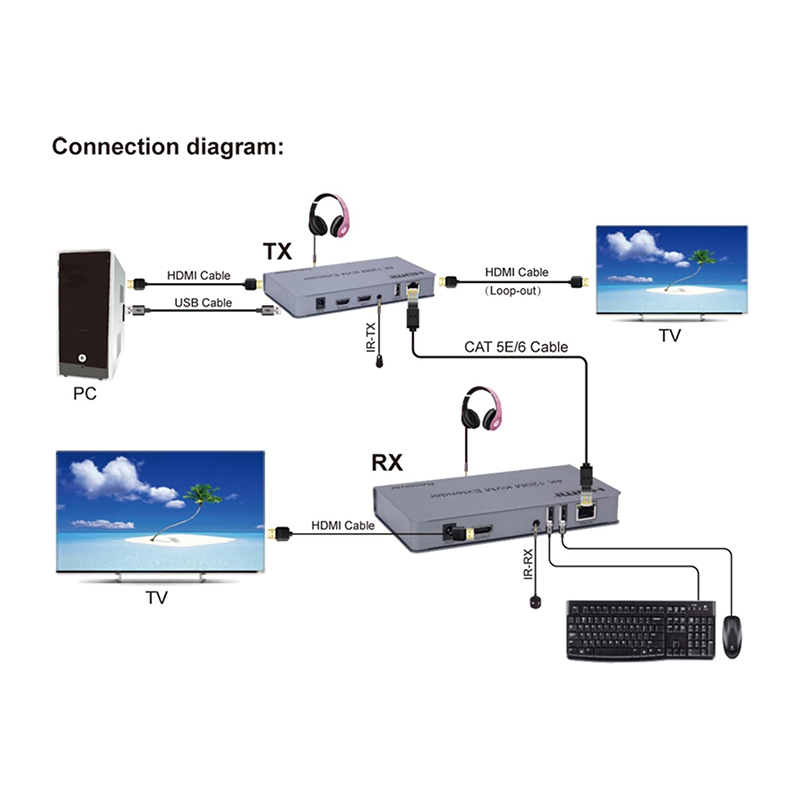

4K HDMI KVM extender kit (TX + RX) that carries HDMI, USB mouse/keyboard and IR up to 120 metres over a single Cat5e/6 cable.
- TX to RX distance: 120m over single Cat5e/6 (Cat6 recommended)
- HDMI in/out: 4K/1080p/720p/576p/576i/480p/480i; 340MHz; 3×3.4Gbps
- USB KVM control: plug mouse and keyboard into the receiver’s USB ports
- IR extension (1 pair IR cables); LED TX/RX signal indicators
- Input/output HDMI cable up to 10m (AWG26); TX 350mA max, RX 200mA max; DC 5V/1A
- Operating: -15 to +55 C, 5–90% RH; TX/RX 107 x 105 x 27.3mm; 499g/494g
- Package: 1x TX, 1x RX, 1 pair IR cable, 2x 5V/1A DC adaptors, 1x user manual
