Description

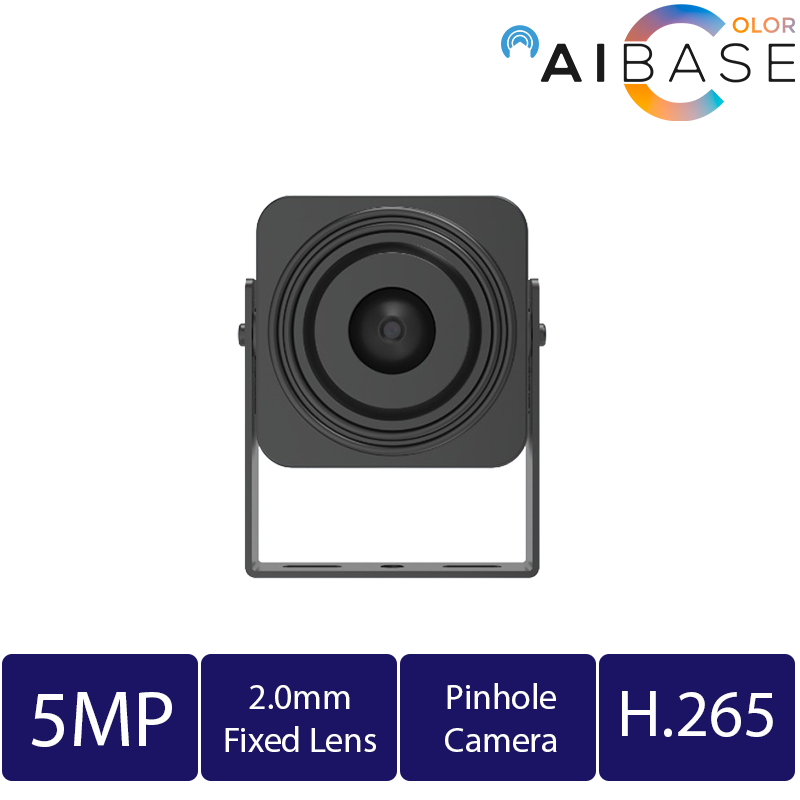

The Aibase CAM-IP3445-20-AI is a 5MP pinhole camera for discreet installations — ATMs, kiosks, door frames and interview rooms — where a visible camera is not wanted. Behind its 2.0mm pinhole lens it runs the full deep-learning suite, including face detection and licence plate detection.
- 5MP imaging on a 1/2.7″ CMOS sensor behind a covert 2.0mm pinhole lens (96° view).
- Deep-learning detection: face, person & vehicle, perimeter, line crossing, object, counting, licence plate and more.
- Line-level audio in/out for an external microphone and speaker.
- PoE powered, max 3.47W; WDR and 3D DNR for clean images.
Specifications — CAM-IP3445-20-AI
| Model | CAM-IP3445-20-AI |
| Image sensor | 1/2.7″ progressive scan CMOS, 5MP (2880 x 1620) |
| Lens | 2.0mm fixed pinhole (M12), F2.8 |
| Field of view | Horizontal 96°; vertical 49°; diagonal 118° |
| Min. illumination | Colour 0.004 lux @ F1.6 (AGC on) |
| WDR | WDR, 3D DNR |
| AI functions | Face detection; person & vehicle; perimeter intrusion; line crossing; object detection; crossing counting; heat map; crowd density; queue length; licence plate; rare sound; region entrance/exiting |
| Audio | 1 line in / 1 line out (no built-in mic/speaker) |
| Compression | H.265 / H.264, triple stream |
| ONVIF | Profile S / G / T / M |
| Power | PoE (802.3af) / DC 12V, max 3.47W |
| Operating temperature | −35°C to +60°C |
| Housing | Metal |
