PoE Extender UP7301(S) – Ethernet & Power over Coax

Description

PoE extender (UP7301(S)) — sends Ethernet and power up to 500m over coaxial or 400m over network cable for long camera runs.

• Model: UP7301(S)

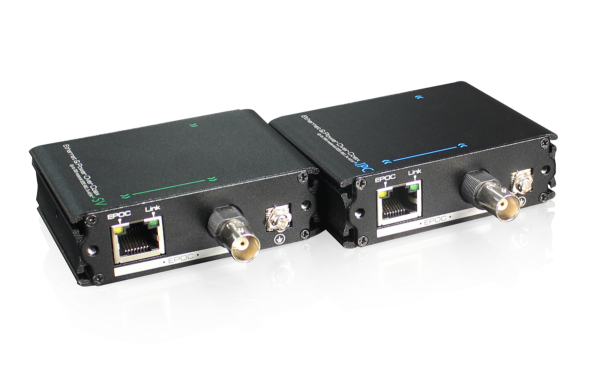

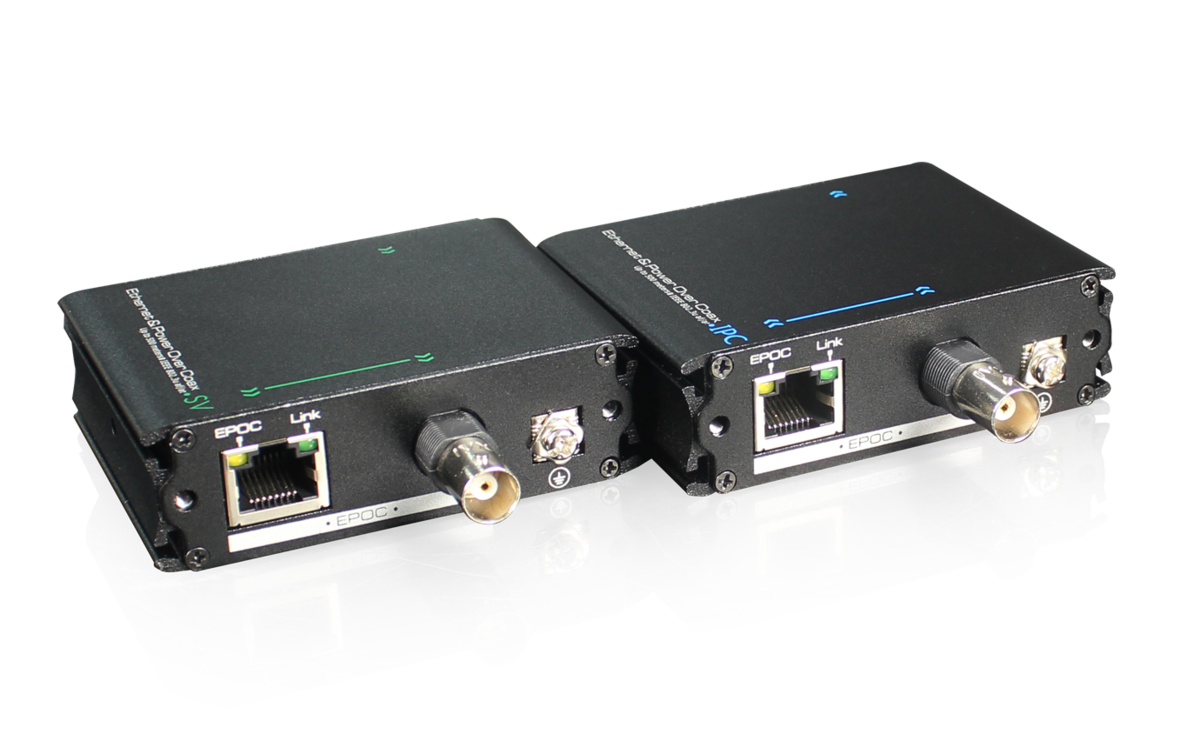

• Two-part kit: SV-Unit (48-57V DC, one PoE input, BNC + RJ45 outputs); IPC-Unit (BNC + RJ45 inputs, one PoE output)
• Up to 500m Ethernet + power over coax; up to 400m over network cable
• Ethernet delay under 1ms
• Standards: IEEE802.3 10BASE-T, 802.3u 100BASE-TX, 802.3af/at
• Circuit isolation, anti-thunder and anti-interference protection
• Plug-and-play; no setup required
