Description

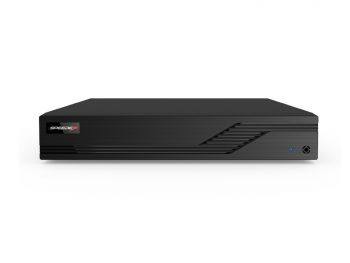

TD-2100TS-HP series are 4 / 8 CH 8MP/5MP/4MP/3MP/1080P/720P/WD1
high definition DVRs with ability to connect analog and IP cameras
simultaneously, which adopt the standard H.265 high profile compression
format and the most advanced SOC technique to ensure real time recording
in each channel and realize outstanding robustness of the system.
TD-2100TS-HP support 4 / 8 CH video input, 1 CH audio input, simultaneous
4 / 8 CH playback. The series of product can meet different security
requirements of home, financial, commerce, enterprise, transportation
and government, etc.
Features
-4 CH TVI / AHD video input, support 8MP/5MP/4MP/3MP/1080P/720P/WD1
-4 CH CVI video input, support 4MP / 3MP / 1080P / 720P / WD1
-4 CH DVR default support 2 / 8 CH IPC 8MP / 5MP / 4MP / 3MP / 1080P / 720P/WD1
-Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate
-Intuitive and user-friendly Graphics User Interface ( GUI ), window style operation by mouse
-Multi-mode recording: manual / timer / motion
-Playback : 4 CH simultaneously playback
-Search: time slice, time, event ( manual, motion ), tag search
-Express and flexible backup via USB, network and so on
-Pentaplex: preview, record, playback, backup and remote access
-DHCP, DDNS, PPPoE network protocol, IE browse and CMS supported
-Remote control via IE or CMS : preview, playback, backup, PTZ and configuration
-Dual stream technology for local storage with high definition, remote
network transmission and remote surveillance with mobile device
-Multi-user online simultaneously
-Authorization management, log review and device status review
-HDMI 4K output, true high resolution display
-Support PTZ preset and auto cruise, up to 255 presets and 8 cruises
-Support NAT function and QRCode scanning by mobile phone and PAD
-Powerful smart phone & Pad surveillance with iOS and Andriod OS
Mobile Apps: SuperLive Plus
Monitor Client for Mac OS: Download
Monitor Client for Windows: Download
Specification
| Model | T2104TS | T2108TS | |
| System | Compression | Standard H.265 High Profile | |
| OS | Embedded Linux | ||
|
Video | Input | BNC × 4 | BNC ×8 |
| Resolution | TVI/AHD : 8MP/5MP/4MP/3MP/1080P/720P/WD1 CVI : 4MP/3MP/1080P/720P/WD1 | ||
| IP Input | 2CH (up to 6CH) | 8CH (up to 16CH) | |
| Output | HDMI × 1 : 3840 × 2160 / 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1 : 1920 × 1080 / 1280 × 1024 / 1024 × 768 BNC × 1 : CVBS ( used as the main or spot output ) | ||
| Audio | Input | RCA × 1 | |
| Output | RCA × 1 | ||
| Two-way audio | Take up channel one audio input | ||
|
Record | Resolution | 4K/4K Lite/5MP/5MP Lite/4MP/4MP Lite / 1080P/ 720P/WD1/D1 | |
|
Frame Rate | 4K@6/7fps (PAL/NTSC; 4CH: only CH1 supports; 8CH: all channels support ) 4K Lite@12fps/15fps (PAL/NTSC) 5MP@12fps (PAL / NTSC) 5MP Lite@20fps (PAL / NTSC) 4MP@12fps(PAL) / 15fps (NTSC) 4MP Lite/1080P/720P/WD1@25fps (PAL) / 30fps (NTSC) | ||
| Bit Rate | 32Kbps ~ 4Mbps | 32Kbps ~ 5Mbps | |
| Mode | Manual, timer, motion | ||
| IP Input | Resolution | 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P | |
| Frame Rate | 25fps ( PAL ) / 30fps ( NTSC ) | ||
|
Playback | Playback | 4CH | 8CH |
| Search | Time slice / time / event / tag search | ||
| Smart Search | Highlight colors to display the camera record in a certain period of time, different colors refer to different record events | ||
| Function | Play, pause, FF, FB, digital zoom, etc. | ||
|
Alarm | Mode | Manual, motion, exception | |
| Input | No | ||
| Output | No | ||
| Triggering | Record, snap, preset, e-mail, etc. | ||
| Network | Interface | RJ 45 100Mbps × 1 | |
| Protocol | TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP | ||
| Bandwidth(Mbps) | 16/40 (access/transfer) | 32/80 (access/transfer) | |
| Mobile Device | OS | iOS, Andriod | |
| Storage | HDD | SATA× 1, up to 6TB per HDD | |
| Backup | Local Backup | U disk, USB removable HDD | |
| Network Backup | Yes | ||
|
Port | RS 485 | RS 485 × 1, connect to PTZ or keyboard | |
| USB | USB 2.0 × 2 | ||
| Remote Controller | Optional | ||
|
Others | Power Supply | DC12V / 1.5A | DC12V / 2A |
| Consumption | ≤ 10W ( without HDD ) | ≤ 15W ( without HDD ) | |
| Dimensions(mm) | 255 × 233 × 42 ( W × D × H ) | ||
| Work Environment | -10~50°C, 10%~90% (humidity) | ||
