Description

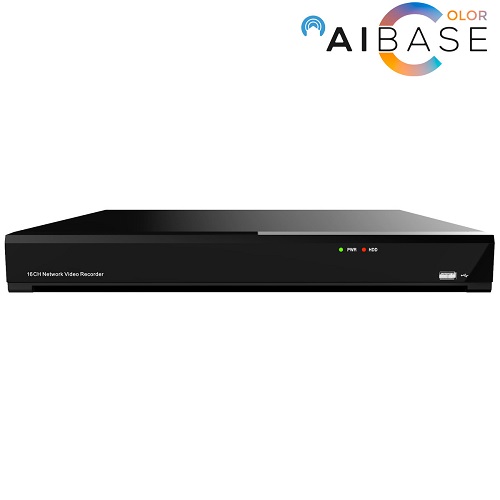

Record up to 16 4K IP cameras with the Aibase NVR-3216-16P-AI-V2 PoE network video recorder. Sixteen cameras power and connect on the recorder’s built-in PoE ports, a 4K HDMI output drives the local monitor, and remote access from mobile devices and computers keeps the system in reach from anywhere. Hard drives are not included. (Specifications below combine the values stated for this model with the manufacturer’s dealer spec sheet for the NVR-3216-16P-AI; see the sourcing note under the draft.)
- 16 channels of 4K IP camera input with H.265 encoding/decoding and standard ONVIF protocol
- 16 built-in PoE ports (IEEE 802.3af) — power and video over one cable per camera
- 112 Mbps incoming / 96 Mbps outgoing bandwidth
- AI functions by camera — smart detection runs in the connected AI cameras
- HDMI output up to 4K (3840 × 2160) plus VGA output for local monitoring
- 2 internal hard drive bays — up to 16 TB of storage as stated for this model (hard drives not included)
- 8 alarm inputs / 1 alarm output, with support for external alarm devices
- RCA voice intercom interface; Gigabit Ethernet; remote access from mobile devices and computers
Compatibility: a 16-channel PoE NVR for ONVIF IP cameras — cameras plug straight into the built-in PoE ports, and AI features are provided by the connected cameras.
Specifications
| Specifications — NVR-3216-16P-AI-V2 (see sourcing note) | |
|---|---|
| Model | NVR-3216-16P-AI-V2 |
| Channels | 16 |
| Camera input | Up to 16 channels of 4K IP camera input; ONVIF |
| Compression | H.265 / H.265+ / H.264 / H.264+ |
| Bandwidth | 112 Mbps incoming / 96 Mbps outgoing |
| PoE | 16 ports, RJ-45 10/100 Mbps, IEEE 802.3af (max 30 W per port) |
| Video outputs | HDMI: up to 3840 × 2160; VGA: up to 1920 × 1080 |
| Storage | 2 SATA bays; up to 16 TB as stated for this model (scope — total vs per-disk — not specified by the source; hard drives not included) |
| Alarm | 8 in / 1 out |
| Audio | 1 line in / 1 audio out (RCA voice intercom) |
| Network | 1 × RJ-45 100/1000 Mbps (WAN); Gigabit Ethernet |
| USB | 1 × USB 2.0 (front) + 1 × USB 2.0 (rear) |
| Power | DC 48 V / 3.75 A input; 8 W consumption (excluding hard disk) |
| Dimensions | 380 × 324.4 × 50 mm |
| Operating conditions | -10 °C to +50 °C (14 °F to 122 °F); humidity less than 90% RH |
