Sale!

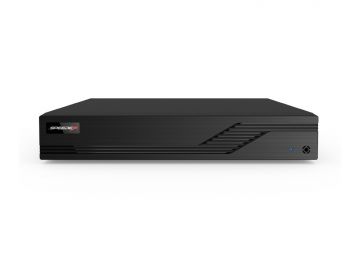

Speedex 4 CH 5MP HD PoE NVR, T3104B1-5MP

$229.00 $159.00

Description

TD-3100B1-0P series are 4 / 8 CH 5MP / 4MP / 3MP / 1080P / 960P / 720P
high definition PoE NVRs, which adopt the most advanced SOC
technique to ensure high definition recording in each channel and realize
outstanding robustness of the system. TD-3100B1-0P series integrate with
4 / 8 PoE network ports, support 4 / 8 CH IPC direct connection to NVR,
simultaneous 4 / 8 CH playback, and 1080P high definition display. The series
of product can meet different security requirements of home, financial,
commerce, enterprise, transportation and government, etc.

Features

-Support 4 CH 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input

-Adopt standard H.265 and H.264 high profile compression format to

get high-quality video at much lower bit rate

-Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style

operation by mouse

-Multi-mode recording: manual / timer / motion / sensor

-Playback : 4 CH simultaneous playback

-Search : time slice, time, event ( manual, sensor, motion ), tag search

-Express and flexible backup via USB, network and so on

-Pentaplex : preview, record, playback, backup and remote access

-DHCP, DDNS, PPPoE network protocol and CMS supported

-Remote control via IE or CMS : preview, playback, backup, PTZ and configuration

-4 PoE network ports, support IPC direct connection to NVR; support PoE power supply

-Dual stream technology for local storage with high definition, remote

network transmission and remote surveillance with mobile device

-Multi-user online simultaneously

-Authorization management, log view and device status view

-1080P HD output, true high resolution display

-Support PTZ preset and auto cruise, up to 255 presets and 8 cruises

-Support NAT function and QRCode scanning by mobile phone and PAD

Powerful smart phone & Pad surveillance with iOS and Andriod OS

Mobile Apps: SuperLive Plus

Software for Mac OS: download

Specification

ModelT3104B1T3108B1

System

CompressionStandard H.265, H.264
OSEmbedded Linux

Video

Network Input4 CH IPC input8 CH IPC input
IP Input Access / Transfer Bandwidth28Mbps / 28Mbps40Mbps / 40Mbps
Network Access Format5MP/4MP/3MP/1080P/960P/720P@25 / 30fps
OutputHDMI × 1 : 1920×1080/1280×1024/1024×768 VGA × 1 : 1920×1080/1280×1024/1024×768

Audio

Network Input4 CH IPC audio input8 CH IPC audio input
2-way AudioNo
Local OutputNo ( HDMI supports the audio output )

Record

Record StreamDual stream recording
Resolution5MP / 4MP / 3MP / 1080P / 960P / 720P
ModeManual, timer, motion, sensor

Playback

Simultaneous PlaybackMax 4 CHMax 8 CH
SearchTime slice / time / event / tag search
Smart SearchHighlight colors to display the camera record in a certain period of time, different colors refer to different record events
FunctionPlay, pause, FF, FB, digital zoom, etc.

Alarm

ModeManual, sensor, motion, exception
InputNo
OutputNo
TriggeringRecord, snap, preset, e-mail, etc.

Network

InterfaceRJ45 10 / 100 Mbps × 1
PoE PortRJ45 × 4RJ45 × 8
ProtocolTCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
Mobile DeviceOSiOS, Andriod
StorageHDDSATA × 1, up to 6TB per HDD

Backup

Local BackupU disk, USB mobile HDD
Network BackupYes

Port

USBUSB 2.0 × 2
Remote ControllerOptional

Others

Power SupplyDC48V/1.25ADC48V/2.5A
Consumption≤ 6W ( without HDD )
Dimensions (mm)255 × 233 × 42 ( W × D × H )
Work Environment-10 ~ 50 ℃,10% ~ 90% humidity
