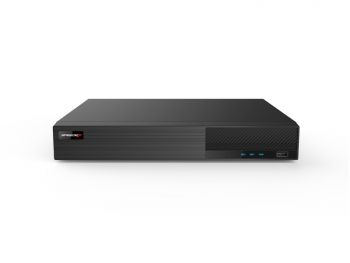

Speedex 4 CH 8MP HD PoE NVR, T3204H1-8MP

$299.00 $199.00

Compare

Description

TD-3200H1-0P series are 4 / 8 CH 8MP / 5MP / 4MP / 3MP / 1080P / 960P /
720P high definition PoE NVRs, which adopt the most advanced SOC
technique to ensure high definition recording in each channel and realize
outstanding robustness of the system. TD-3200H1-0P series integrate with
4 / 8 PoE network ports, support 4 / 8 CH IPC direct connection to NVR,
simultaneous 4 / 8 CH playback, and 4K high definition display. The series
of product can meet different security requirements of home, financial,
commerce, enterprise, transportation and government, etc.

Features

-Support 4 CH 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P IP input

-Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate

-Intuitive and user-friendly Graphic User Interface ( GUI ), Windows style operation by mouse

-Multi-mode recording: manual / timer / motion / sensor

-Playback : 4 CH simultaneous playback

-Search : time slice, time, event ( manual, sensor, motion ), tag search

-Express and flexible backup via USB, network and so on

-Pentaplex : preview, record, playback, backup and remote access

-DHCP, DDNS, PPPoE network protocol and CMS supported

-Remote control via IE or CMS : preview, playback, backup, PTZ and configuration

-4 PoE network ports, support IPC direct connection to NVR; support PoE power supply

-Dual stream technology for local storage with high definition, remote

-network transmission and remote surveillance with mobile device

-Multi-user online simultaneously

-Authorization management, log view and device status view

-4K output, true high resolution display

-Support PTZ preset and auto cruise, up to 255 presets and 8 cruises

-Support NAT function and QRCode scanning by mobile phone and PAD

-Powerful smart phone & Pad surveillance with iOS and Andriod OS



Mobile Apps: SuperLive Plus



Software for Mac OS: download

Specification



Model T3204H1 T3208H1


System

Compression Standard H.265
OS Embedded Linux






Video

Network Input 4 CH IPC input 8 CH IPC input
Network Access Bandwidth 40Mbps 50Mbps
Network Access Format 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P@25 / 30fps
Output HDMI × 1 : 4K × 2K / 1920 × 1080 / 1280 × 1024

VGA × 1 : 1920 × 1080 / 1280 × 1024



Audio

Network Input 4 CH IPC audio input 8 CH IPC audio input
2-way Audio RCA × 1
Local Output RCA × 1


Record

Record Stream Dual stream recording
Resolution 8MP / 5MP / 4MP / 3MP / 1080P / 960P / 720P
Mode Manual, timer, motion, sensor






Playback

Simultaneous Playback Max 4 CH Max 8 CH
Search Time slice / time / event / tag search
Smart Search Highlight colors to display the camera record in a certain period of time, different colors refer to different record events
Function Play, pause, FF, FB, digital zoom, etc.




Alarm

Mode Manual, sensor, motion, exception
Input Support IPC alarm input
Output Support IPC alarm output
Triggering Record, snap, preset, e-mail, etc.




Network

Interface RJ45 10 / 100 Mbps × 1
PoE Port RJ45 × 4 RJ45 × 8
Protocol TCP / IP, PPPoE, DHCP, DNS, DDNS, UPnP, NTP, SMTP
Web Client Max 5 users online
Mobile Device OS iOS, Andriod
Storage HDD SATA × 1, max 8T per HDD


Backup

Local Backup U disk, USB mobile HDD
Network Backup Yes




Port

USB USB 2.0 × 2 ( one in the front panel and the other in the rear panel )
Remote Controller Optional






Others

Power Supply DC48V
Consumption ≤ 5W ( without HDD ) ≤ 5W ( without HDD )
Dimensions (mm) 300 × 270 × 55 ( W × D × H )

300 × 248 × 52 ( W × D × H )

Work Environment -10 ~ 50 ℃,10% ~ 90% humidity
