Description

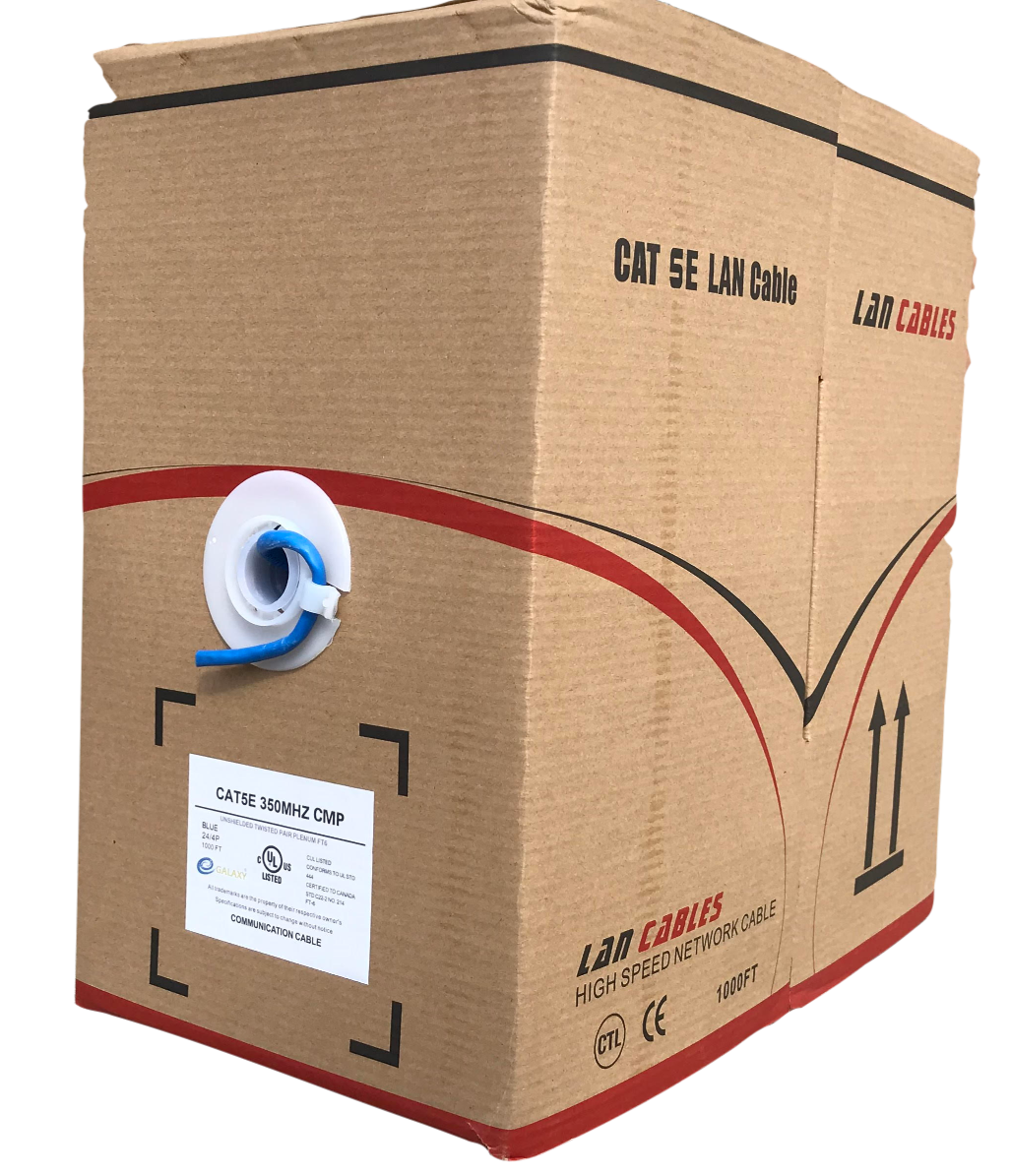

1000 ft (304.8 m) of plenum Cat5e bulk cable in blue for in-ceiling and air-handling-space network runs — solid pure copper with a CMP (FT6) plenum jacket, for offices, schools and commercial spaces where the fire code, not preference, decides the cable.
- CMP plenum rated, FT6 — the highest Canadian flame rating, required for runs through ceilings and air-handling spaces
- 24AWG × 4 pairs of solid pure copper — solid conductors punch down cleanly into jacks and patch panels for permanent links; pure copper, not copper-clad aluminium
- 350 MHz bandwidth — dependable Gigabit Ethernet, PoE cameras, access points and voice on one cable plant
- Footage marked every 2 feet — measure runs as you pull and know what is left on the spool without a tape
- CSA approved
- Model CBL-CAT5-P1000; blue jacket
Choosing cable: choose plenum CMP cable where the run passes through a plenum ceiling or air-handling space; for ordinary in-wall riser runs, CMR cable is the less expensive correct choice. Jacks, panels and connectors are sold separately.
Specifications
| Category | Cat5e |
| Length | 1000 ft (304.8 m), spool |
| Conductor | 24AWG × 4 pairs, solid pure copper |
| Jacket rating | CMP plenum, FT6 |
| Bandwidth | 350 MHz |
| Approvals | CSA approved |
| Marking | Footage marked every 2 ft |
| Model | CBL-CAT5-P1000 |
| Colour | Blue |
Buying from Factory Direct Sale: order by 5:00 PM ET and it ships the same day from our Markham store (950 Denison St Unit 16, Markham, ON L3R 3K5), or pick it up in store. Covered by Factory Direct Sale’s store warranty: 90-day quality warranty on main parts (refurbished, Open Box, Clearance and final-sale items are sold as-is; warranty shipping fees are the purchaser’s).
