Description

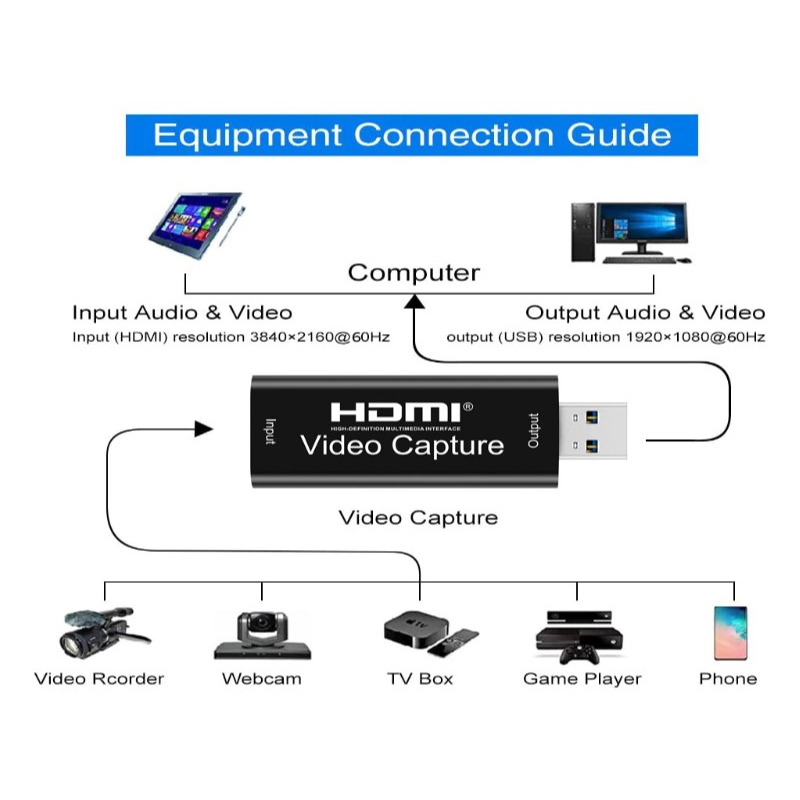

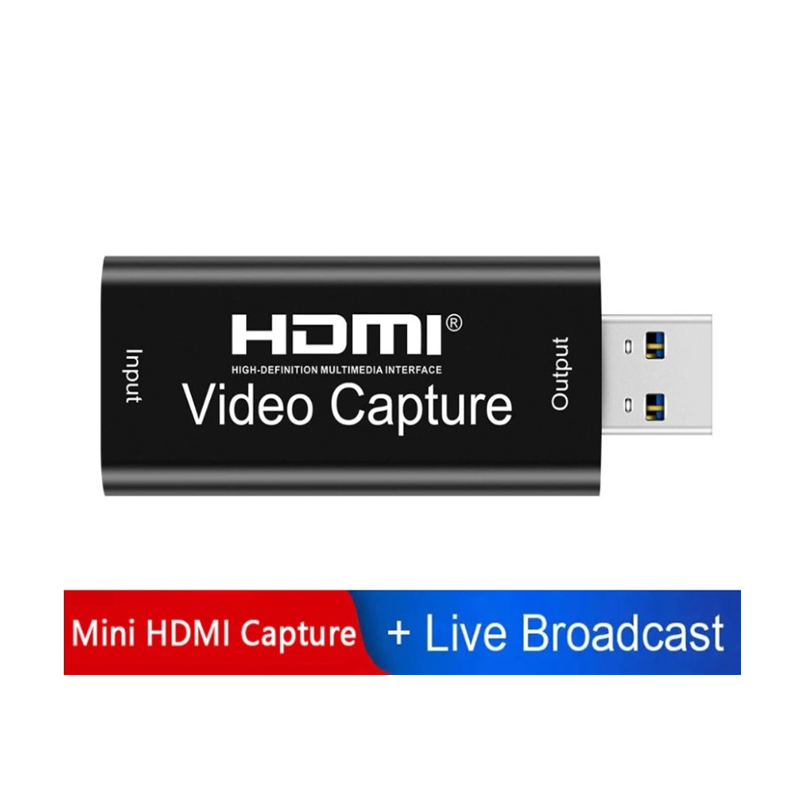

4K-input HDMI video capture card / video grabber record box for PS4, DVD, camcorder and camera — recording and live streaming. Captures HDMI video and audio to computers and smartphones for preview and storage; suitable for HD acquisition, teaching recording, medical imaging and more.
- Input max resolution 4K (HDMI up to 3840×2160@30Hz)
- Output max resolution 1920×1080@30Hz
- 8/10/12-bit deep colour
- Video input format: 8/10/12 bit colour depth; output mode: YUV, JPEG
- Audio format: L-PCM
- Input cable ≤15m (AWG26 HDMI standard cable, 1080P and below)
- Works with VLC, OBS, Amcap and most acquisition software
- Windows, Android and MacOS; USB Video/UVC and USB Audio UAC standard
- No external power supply — compact and portable
- Max working current 0.4A/5VDC; operating temperature -10 to +55°C
- Size: 64x28x13mm / 2.52×1.1×0.51in
