Description

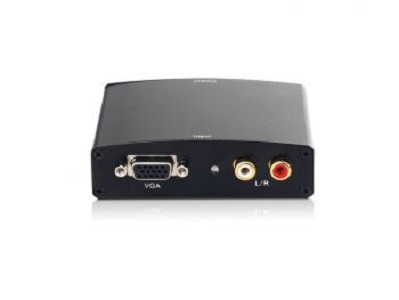

This HDMI converter has many features that enable it to perform in a superior manner. Among those features you will find:
1ã€Easy to Use: Install in seconds, no need of setting.
2ã€Conversion: It could convert complete HDMI into VGA video and R/L audio output.
3ã€Support HDCP 1.2
4ã€Support 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth for HDMI Input.
5ã€Supports Analogue Video output up to UXGA and 1080p with 10-bit DAC
SPECIFICATIONS
| Signal Inputs/Output | |
| Input Video Signal | 0.5-1.0 volts p-p |
| Input DDC Signal | 5 volts p-p (TTL) |
| Input connection | HDMI A female(19pin) |
| Output connection | VGA, R/L |
| HDMI video input format | 480i/576i/480p/576p/720p/1080i/1080p |
| VGA video output format | 480i/576i/480p/576p/720p/1080i/1080p |
| Audio output format | 2 channel LPCM |
| Operating Frequency | |
| Vertical Frequency Range | 50/60Hz |
| Input Video Amplifier Bandwidth | 1.65Gpbs/165MHz |
| Mechanical | |
| Size(W-H-D) | 88mmW x 25.5mmH x 68mmD |
| Weight(Net) | 0.68kgs |
| Warranty | |
| Limited Warranty | 90 Day Parts and Labor |
| Environmental | |
| Operating Temperature | 0 „ƒ to +70 „ƒ |
| Operating Humidity | 10% to 85 % RH (no condensation) |
| Storage Temperature | -10 „ƒ to +80 „ƒ |
| Storage Humidity | 5% to 95 % RH (no condensation) |
| Power Requirement | |
| External Power Supply | 5V DC@2A |
| Power consumption (Max) | 5W |
| Regulatory Approvals | |
| Converter Unit | FCC,CE, |
| Power Supply | CE,FCC |
| Accessories Adapter | |
| AC Power Adapter | US standard, UK standard and so on |
| User Manual | English Version |
