Description

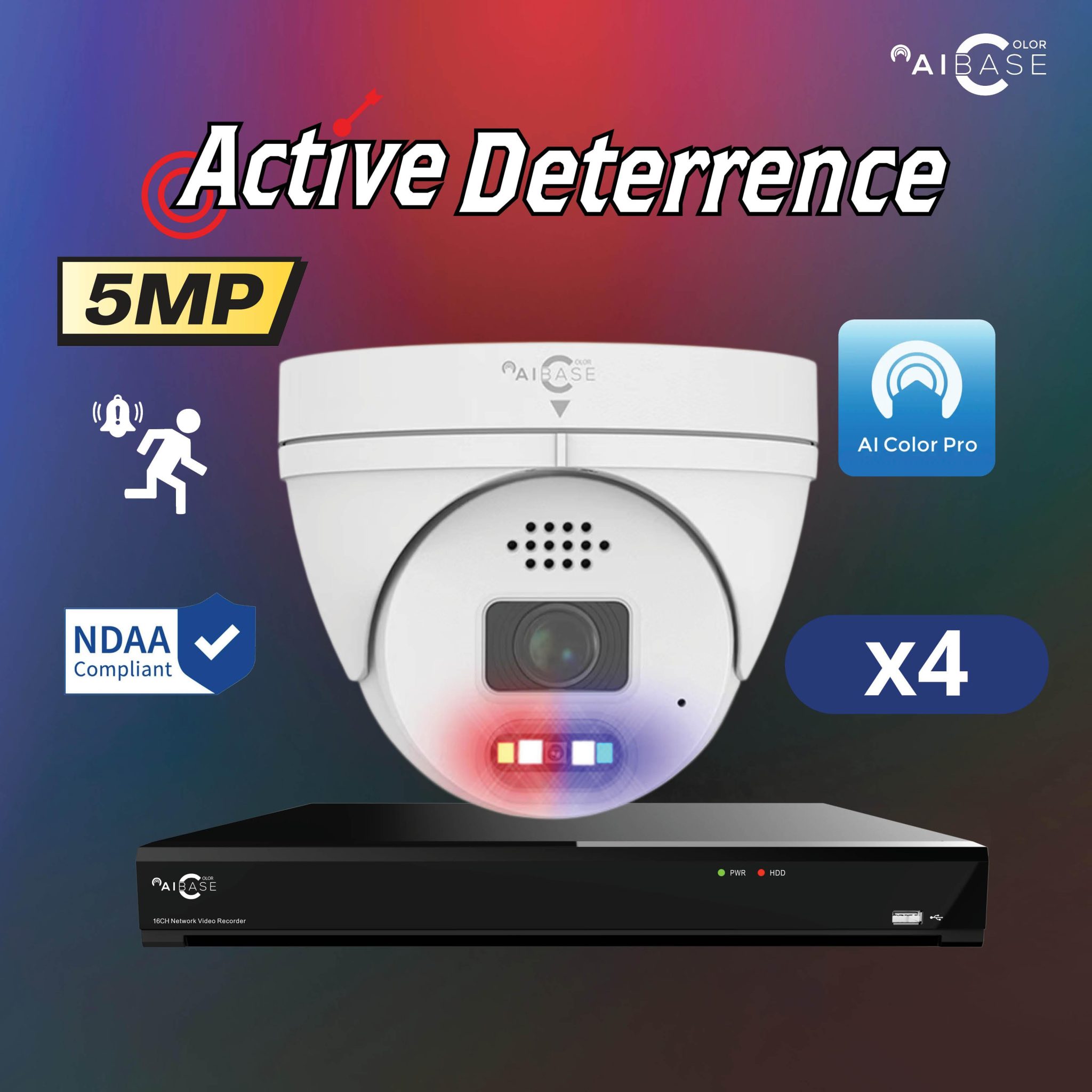

The Aibase KIT-NV3104+4X3155W is the value pick of the kit line: the NVR-3104-4P-AI-V2 with four white 5MP full-colour turret cameras with face and license plate detection.
- Complete kit: 1 x NVR + 4 x CAM-IP3155W-PV-28-AI-V2 turret cameras — plug the cameras into the NVR’s PoE ports and record.
- 24/7 full colour: smart IR + warm-light illumination keeps night footage in colour.
- Remote viewing from phone and computer; H.265 recording saves disk space.
- Hard drives are NOT included — the NVR has 1 SATA bay (up to 10TB) — add your own surveillance hard drive (cables also not included).
Recorder specifications
| NVR | NVR-3104-4P-AI-V2 — 4-channel 4K PoE NVR |
| Incoming bandwidth | 76 Mbps |
| Recording | Up to 4 channels of 4K IP cameras |
| PoE ports | 4 x RJ45, 802.3at/af |
| Video outputs | 1 x HDMI, 1 x VGA |
| Hard drive bays | 1 x SATA, up to 10TB |
| Compression | H.265 / H.264 |
| ONVIF | Profile S / G / T |
| Dimensions / weight | 300 x 227 x 53 mm; 0.98 kg (without HDD) |
Camera specifications (each)
| Camera | CAM-IP3155W-PV-28-AI-V2 — 5MP full-colour turret |
| Image sensor | 1/2.7″ progressive CMOS, 5MP (2880 x 1620) |
| Lens | 2.8mm fixed, F1.0 |
| Min. illumination | Colour 0.002 lux @ F1.0 (AGC on); B/W 0 lux with IR |
| Illumination | IR up to 30 m; warm light up to 25 m |
| WDR | True WDR, 3D DNR |
| Smart features | Face detection; license plate detection |
| Audio | Built-in microphone and speaker |
| ONVIF | Profile S / G / T / M |
| Storage | microSD up to 256GB (per camera) |
| Power | PoE (802.3af) / DC 12V, max 5.8W DC / 7.1W PoE |
| Protection | IP67, metal housing |
| Dimensions / weight | 100 x 100 x 85.1 mm; approx. 405 g |
Local pickup & shipping: Order by 5:00 PM ET and this kit ships the same day from our Markham store (950 Denison St Unit 16, Markham, ON L3R 3K5), or pick it up in store. Covered by Factory Direct Sale’s store warranty: 3-year quality warranty on main parts (refurbished, Open Box, Clearance and final-sale items are sold as-is; warranty shipping fees are the purchaser’s).
