Description

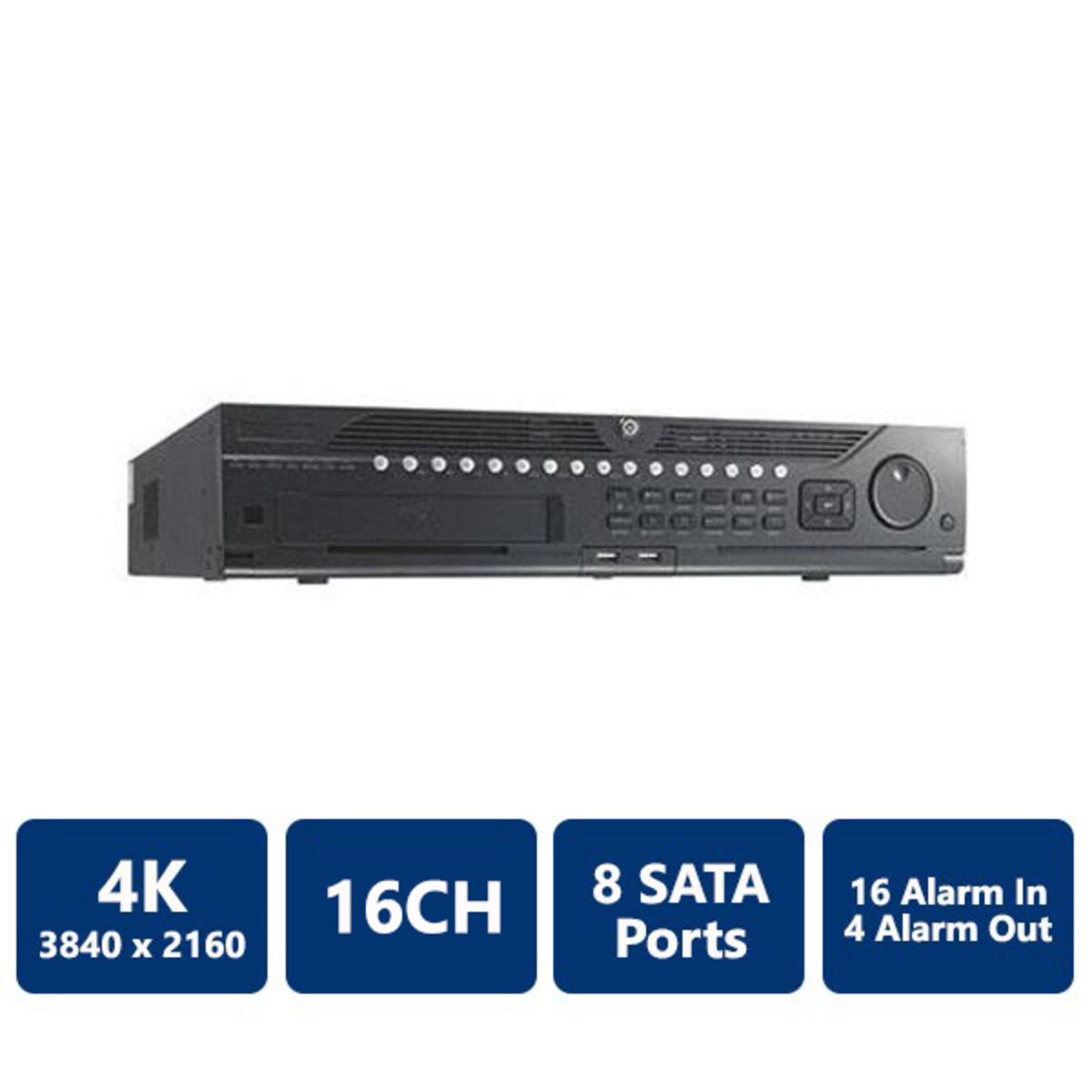

The Hikvision DS-9616NI-I8 is a 16-channel network video recorder for mid-size camera systems that need 4K output, deep storage and RAID protection in one 2U chassis.
- 16 IP camera inputs, recording resolution up to 12 MP (up to 32 MP in ultra HD mode)
- 256 Mbps incoming bandwidth (200 Mbps in RAID mode), 256 Mbps outgoing
- 8 SATA interfaces plus 1 eSATA, with hot-swap support and RAID 0, 1, 5, 6, 10
- Decoding up to 16 channels at 1080p; synchronous playback of 16 channels
- HDMI 1 output up to 4K (3840 × 2160), plus HDMI 2 and dual VGA outputs
- Smart search and smart playback to find motion in a selected area faster; POS text overlay via RS-232 and alarm interfaces
- HDD quota and group modes assign different capacity to different channels
Specifications
| IP video input | 16 channels |
| Incoming / outgoing bandwidth | 256 Mbps / 256 Mbps (200 / 200 Mbps in RAID mode) |
| Recording resolution | Up to 32 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p and below |
| Decoding capability | 1-ch@32 MP / 2-ch@12 MP / 4-ch@8 MP / 8-ch@4 MP / 16-ch@1080p (30 fps) |
| Storage | 8 × SATA + 1 × eSATA, hot-swap, RAID 0/1/5/6/10 |
| Video outputs | HDMI 1 up to 4K/60Hz; HDMI 2 up to 1080p; VGA 1 / VGA 2 up to 1080p |
| Network | 2 × gigabit Ethernet; up to 128 remote connections |
| Interfaces | USB 2.0 front / USB 3.0 rear; RS-232; RS-485; alarm in/out 16/4 |
| Dimensions / weight | 445 × 470 × 90 mm, 2U; approx. 10 kg (22 lb) without HDD |
Buying from Factory Direct Sale: order by 5:00 PM ET and it ships the same day from our Markham store (950 Denison St Unit 16, Markham, ON L3R 3K5), or pick it up in store. Covered by Hikvision’s 3-year manufacturer warranty.
