Description

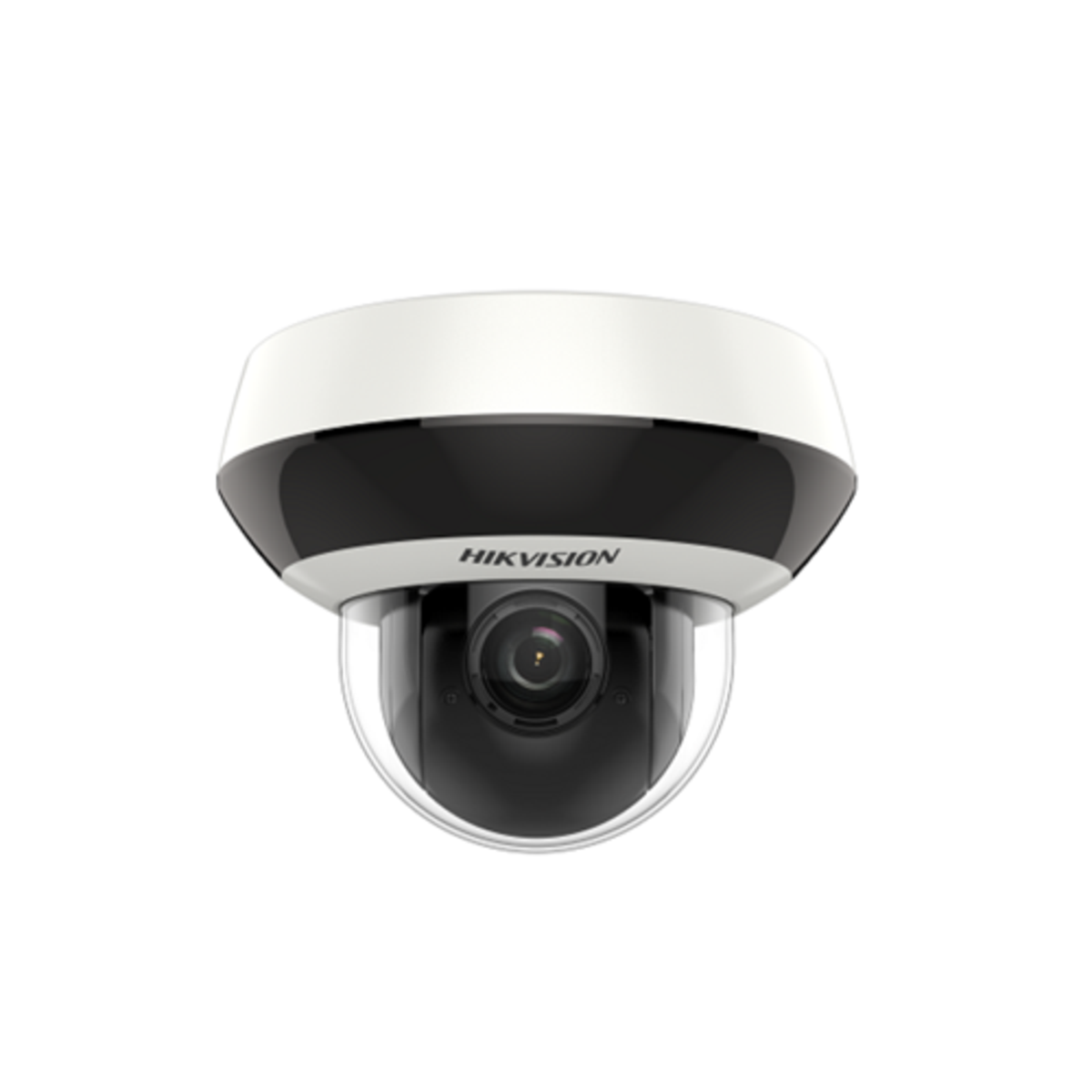

The Hikvision DS-2DE2A404IW-DE3 is a 4 MP mini PTZ camera for entrances, parking areas, driveways and building corners — anywhere one fixed camera can’t see everything. It pans 330° and zooms 4× optically, so a single camera can watch a wide area and then zoom in to read a licence plate or a face, day or night. The compact dome housing is IP66 weatherproof and IK10 vandal-resistant for outdoor mounting.
- 4 MP resolution (2560 × 1440) — detailed video for identifying people and vehicles, not just seeing movement
- 4× optical zoom (2.8–12 mm), 16× digital — swing from a 100° wide overview to a tight 33° view without losing image quality
- Pan 0°–330°, tilt 0°–90°, 300 presets — park the camera on the spots that matter (gate, till, loading door) and tour them automatically
- 120 dB true WDR — keeps faces visible against bright storefront glass and sunlit parking lots
- IR night vision to 20 m — clear black-and-white video in total darkness
- H.265+ compression — sharper video than H.264 at a fraction of the bandwidth and recorder storage
- Built-in microphone plus audio in/out — hear what’s happening at the camera, not just see it
- IP66 + IK10 housing — sealed against rain and dust and rated to withstand vandal impacts
- PoE (802.3af) or 12 VDC — one cable for power and video from a PoE NVR or switch
Compatibility: an IP camera that pairs with Hikvision NVRs and the iVMS-4200 / Hik-Connect apps for live view, playback and PTZ control from your phone or PC.
Specifications
| Specifications — DS-2DE2A404IW-DE3 | |
|---|---|
| Model | DS-2DE2A404IW-DE3 |
| Image sensor | 1/3″ progressive scan CMOS |
| Max. resolution | 2560 × 1440 (4 MP) |
| Min. illumination | Color: 0.005 lux @(F1.6, AGC ON); B/W: 0.001 lux; 0 lux with IR |
| Lens | 2.8–12 mm; 4× optical zoom, 16× digital zoom |
| Field of view | Horizontal 100°–33°; vertical 53°–18° |
| Pan / tilt | Pan 0°–330°; tilt 0°–90°; 300 presets |
| IR distance | Up to 20 m |
| WDR | 120 dB |
| Video compression | H.265+ / H.265 / H.264+ / H.264 |
| Audio | 1-ch input, 1-ch output; built-in microphone |
| Network | 1 × RJ45 10/100 Mbps Ethernet, PoE |
| Power | 12 VDC or PoE (802.3af) |
| Protection | IP66, IK10 |
| Dimensions | Φ 130.7 × 101.7 mm |
Buying from Factory Direct Sale: Order by 5:00 PM ET and this camera ships the same day from our Markham store (950 Denison St Unit 16, Markham, ON L3R 3K5), or pick it up in store. Covered by Hikvision’s 3-year manufacturer warranty.
