Description

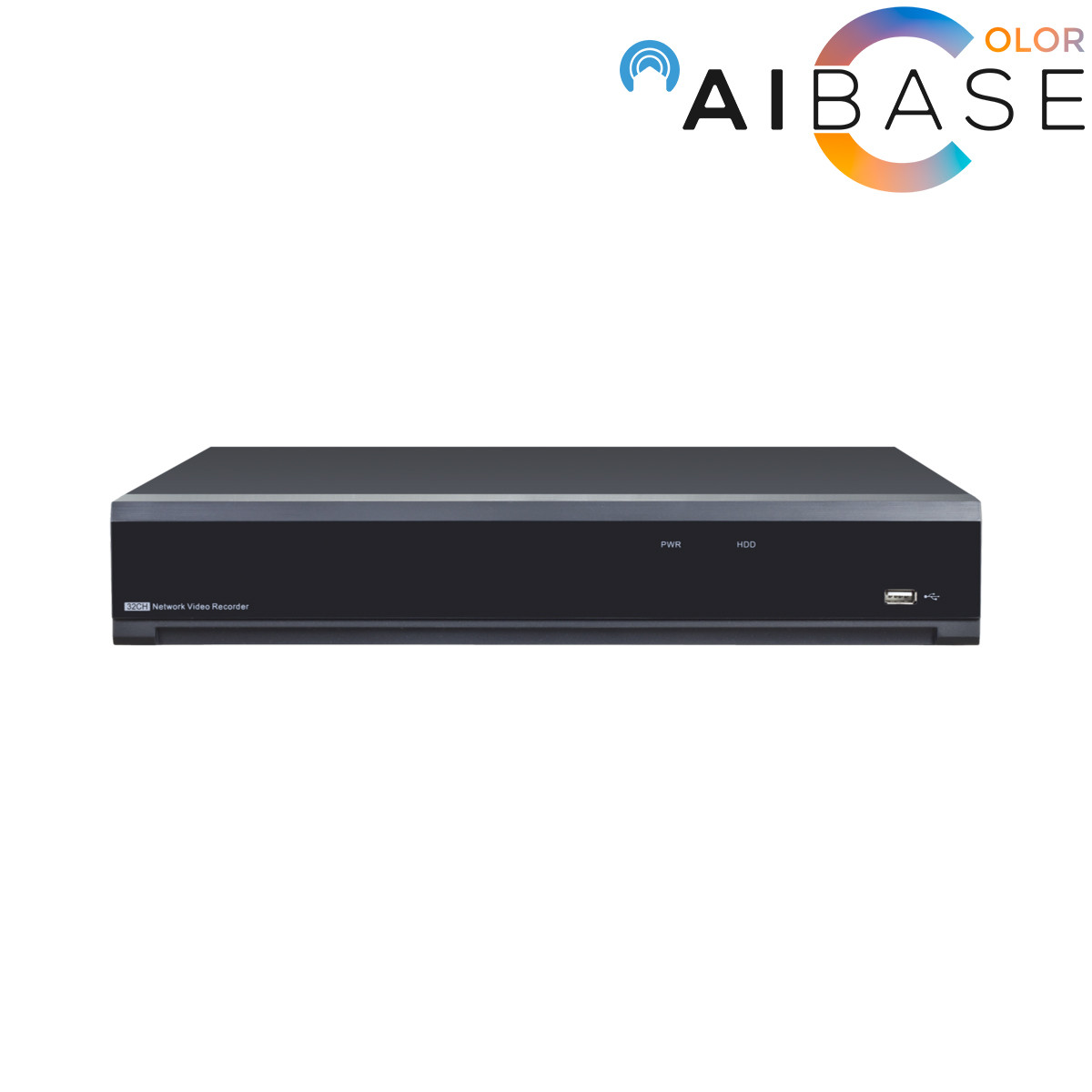

The Aibase NVR-3432-16P-AI is a 32-channel 4K network video recorder with 16 built-in PoE ports, made for large camera systems in businesses and warehouses. Sixteen cameras power and connect directly on the recorder’s own PoE ports (IEEE 802.3at/af), two HDMI outputs and a VGA output drive local monitors (one HDMI up to 4K), and AI functions are supported through the connected cameras. Hard drives are not included.
- 32 channels of IP camera recording, for cameras up to 12 MP
- 4K real-time recording with H.264 / H.265 / H.264+ / H.265+ compression
- 320 Mbps incoming and 320 Mbps outgoing bandwidth
- 16 built-in PoE ports (IEEE 802.3at/af) — cameras connect and power over a single cable each; 2 gigabit LAN ports
- AI functions supported by camera — smart detection and face recognition run in the connected AI cameras
- 2 HDMI outputs (one up to 4K, one up to 1080p) plus 1 VGA output
- Playback of up to 16 channels
- 4 SATA hard drive ports plus 1 eSATA — up to 16 TB per disk, 64 TB total across the 4 bays (hard drives not included)
- 16 alarm inputs / 1 alarm output; audio 1 in / 1 out
Compatibility: a 32-channel PoE NVR for IP camera systems — 16 cameras plug straight into the built-in PoE ports, and AI features are provided by the connected cameras. ONVIF compatible.
Specifications
| Specifications — NVR-3432-16P-AI | |
|---|---|
| Model | NVR-3432-16P-AI |
| Channels | 32 |
| Recording | 4K real-time; cameras up to 12 MP; H.264 / H.265 / H.264+ / H.265+ |
| Bandwidth | 320 Mbps incoming / 320 Mbps outgoing |
| Playback | Up to 16 channels |
| PoE ports | 16 built-in, IEEE 802.3at/af |
| Network | 2 × gigabit LAN ports (10/100/1000 Mbps) |
| AI | AI functions supported by camera, including face recognition via camera |
| Video outputs | 2 × HDMI (1 up to 3840 × 2160, 1 up to 1920 × 1080) + 1 × VGA (up to 1920 × 1080) |
| Storage | 4 SATA ports + 1 eSATA; up to 16 TB per disk (64 TB total); hard drives not included |
| Alarm | 16 in / 1 out |
| Audio | 1 in / 1 out |
| USB | 1 × USB 2.0 (front); 1 × USB 3.0 + 1 × USB 2.0 (rear) |
| Protocols | ONVIF compatible |
| Dimensions | 378 × 325.8 × 66 mm (W × D × H) |
| Operating conditions | 0 °C to +50 °C; humidity < 90% RH |
Buying from Factory Direct Sale: Order by 5:00 PM ET and your order ships the same day from our Markham store (950 Denison St Unit 16, Markham, ON L3R 3K5), or pick it up in store. Covered by Factory Direct Sale’s store warranty: 90-day quality warranty on main parts (refurbished, Open Box, Clearance and final-sale items are sold as-is; warranty shipping fees are the purchaser’s).
